| UTK-615AP-VFB80 | UTK-615AP-VFW80 | ||
| Color | Color | Black | White |
| Display | Size | 15.6" TFT LCD | 15.6" TFT LCD |
| Display | Max. Resolution | FHD (1920 x 1080) | FHD (1920 x 1080) |
| Display | Brightness | 220 cd/m² | 220 cd/m² |
| Touch Screen | Type | Projected Capacitive | Projected Capacitive |
| Processor System | CPU | Rockchip ARM Cortex™-A17 RK3288 1.6 GHz | Rockchip ARM Cortex™-A17 RK3288 1.6 GHz |
| Processor System | RAM | 2G DDR3L installed | 2G DDR3L installed |
| Processor System | Storage | 8GB of on board eMMC | 8GB of on board eMMC |
| Processor System | OS | Android 8.1 | Android 8.1 |
| I/O Interface | Serial Port | 1 x COM (RS-232) | 1 x COM (RS-232) |
| I/O Interface | USB Port | 1 x USB 2.0 | 1 x USB 2.0 |
| I/O Interface | Ethernet | 1 x RJ-45 Gigabit Ethernet (10/100/1000) | 1 x RJ-45 Gigabit Ethernet (10/100/1000) |
| I/O Interface | Extendable Slot | 1 x Micro SD, 1 x SIM | 1 x Micro SD, 1 x SIM |
| I/O Interface | Speaker | 2 x 2W Speaker | 2 x 2W Speaker |
| Environment | Operating Temperature | 0~40° C | 0~40° C |
| Environment | Operating Humidity | 10 ~ 95% @ 40°C non-condensing | 10 ~ 95% @ 40°C non-condensing |
| Power | Input Rating | 12 V/5 A (60 W ITE Adapter) | 12 V/5 A (60 W ITE Adapter) |
| Peripheral | Bluetooth | Bluetooth® v4.2 | Bluetooth® v4.2 |
| Peripheral | Barcode Scanner | 1D/2D Barcode Scanner | 1D/2D Barcode Scanner |
| Peripheral | GPS | LTE + GPS communication module (optional) | LTE + GPS communication module (optional) |
| Peripheral | Smart Card Reader | optional | optional |
| Peripheral | NFC/RFID Reader | optional | optional |
| Peripheral | Camera | 720p web camera module; Structured-light 3D scanner (optional) | 720p web camera module; Structured-light 3D scanner (optional) |
| Peripheral | Printer | 80 mm thermal printer (default); 58 mm thermal printer (optional) | 80 mm thermal printer (default); 58 mm thermal printer (optional) |
| Peripheral | Battery Pack | 8400 mAh battery pack (optional) | 8400 mAh battery pack (optional) |

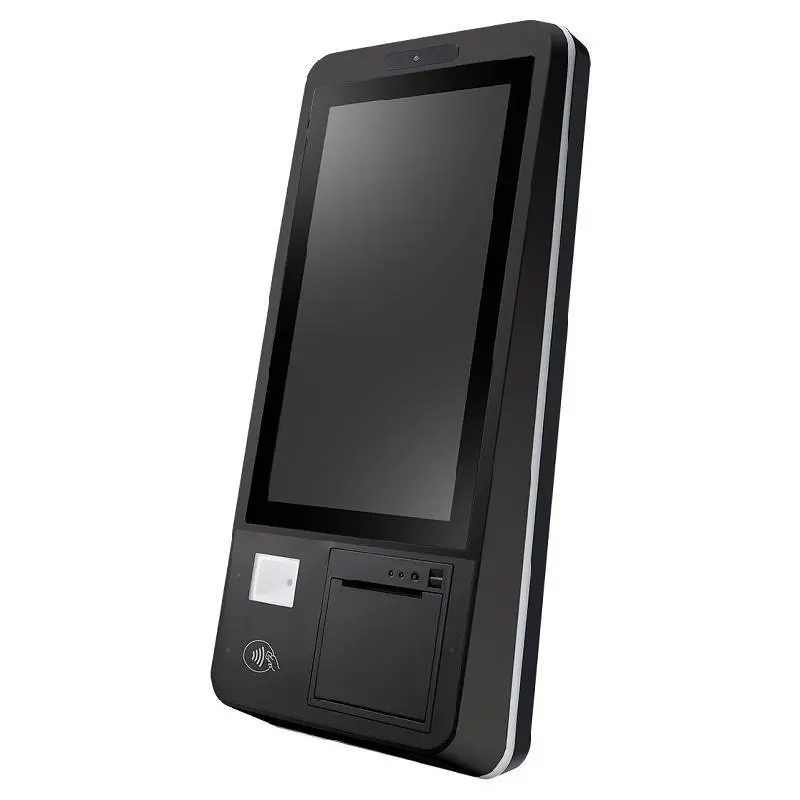

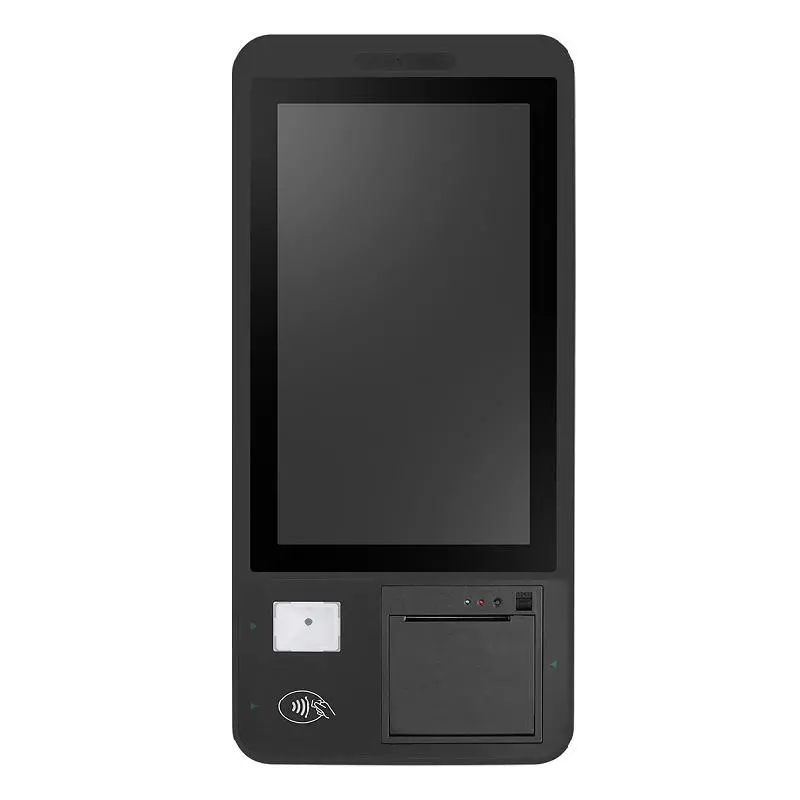

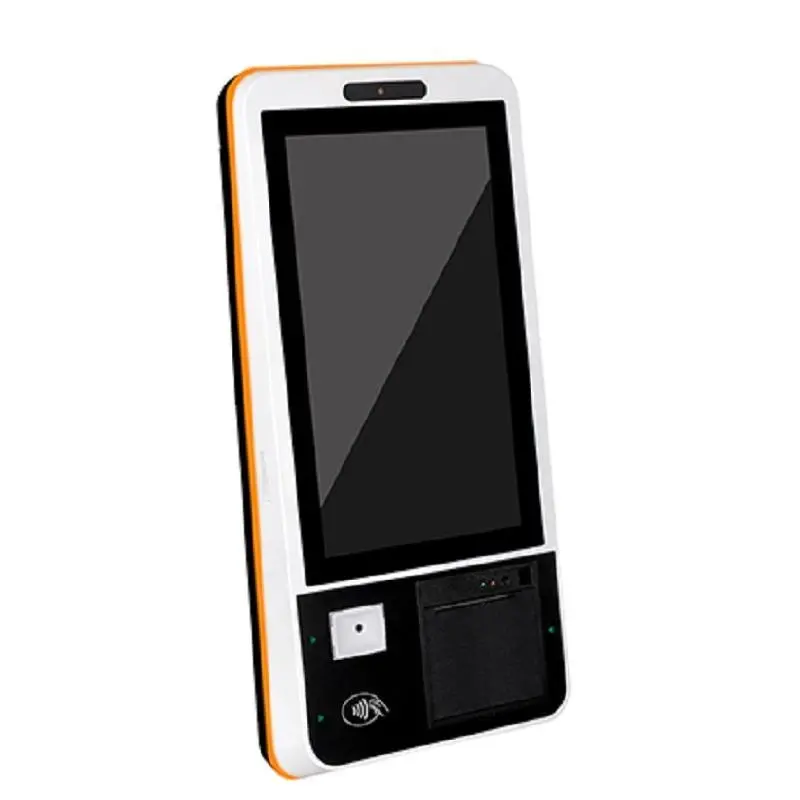

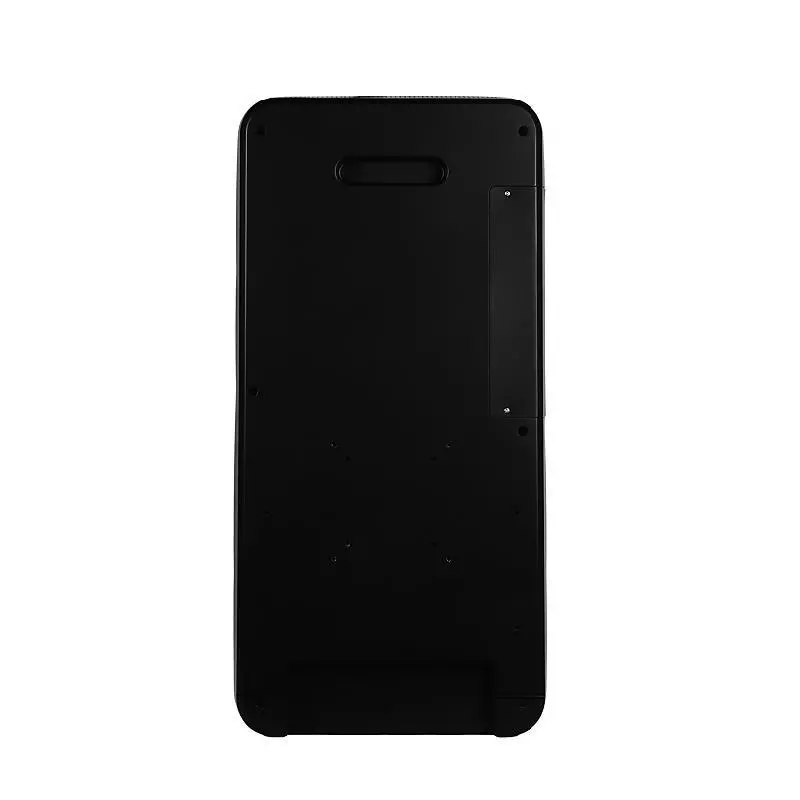

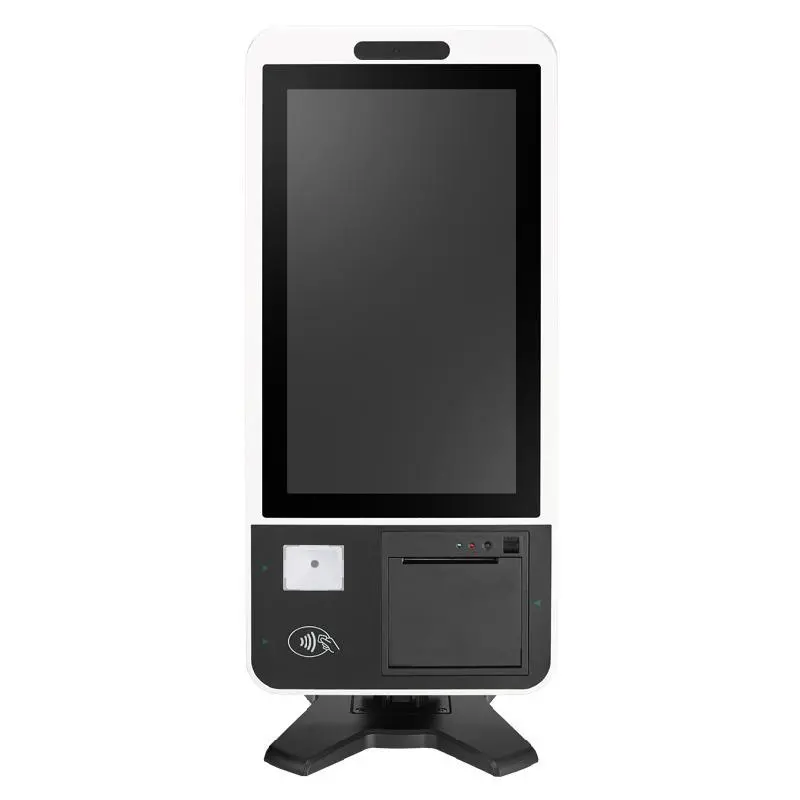

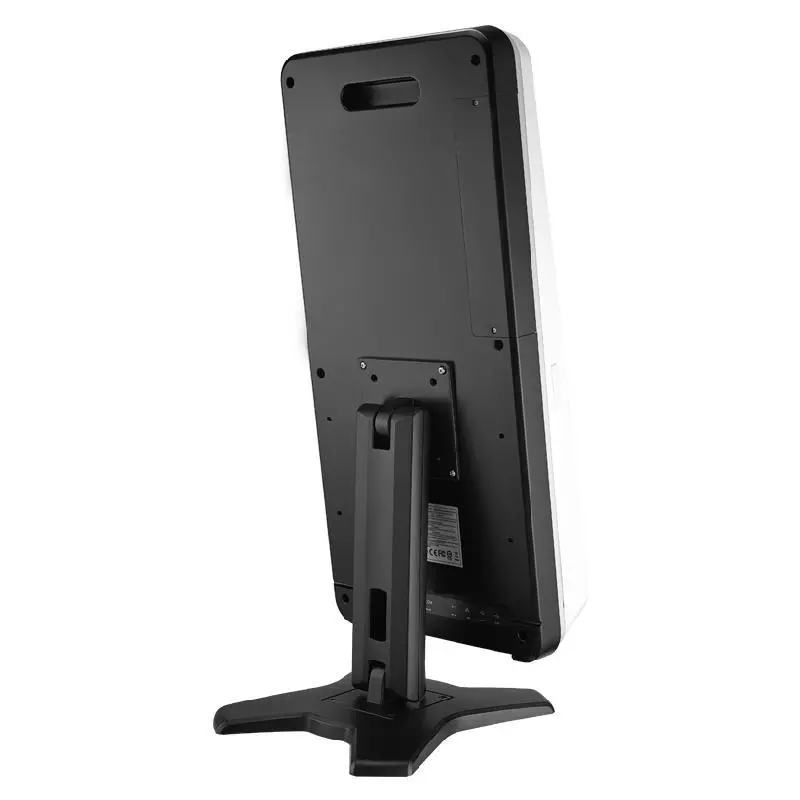

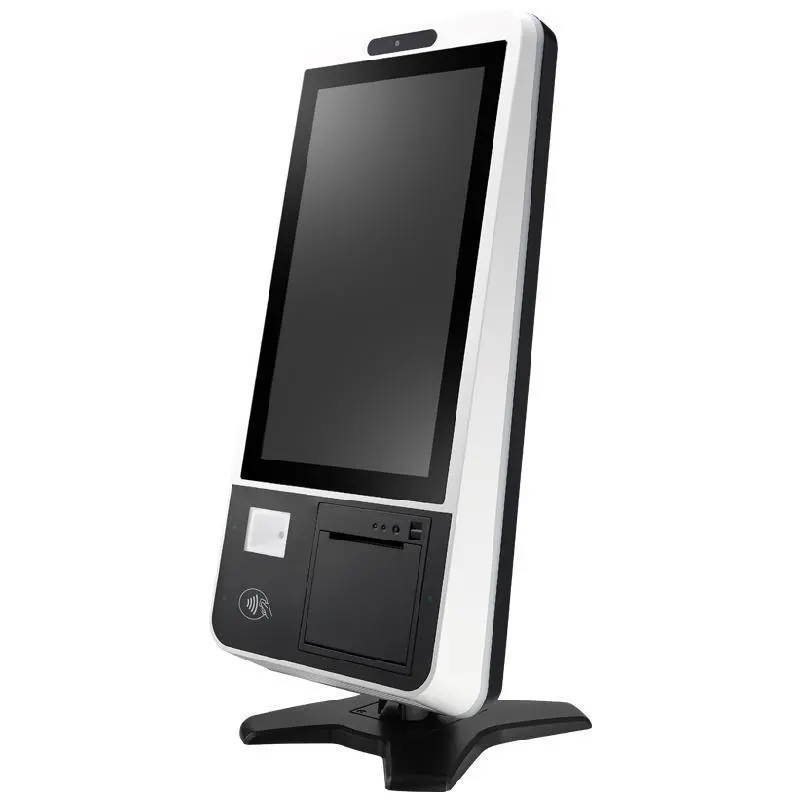

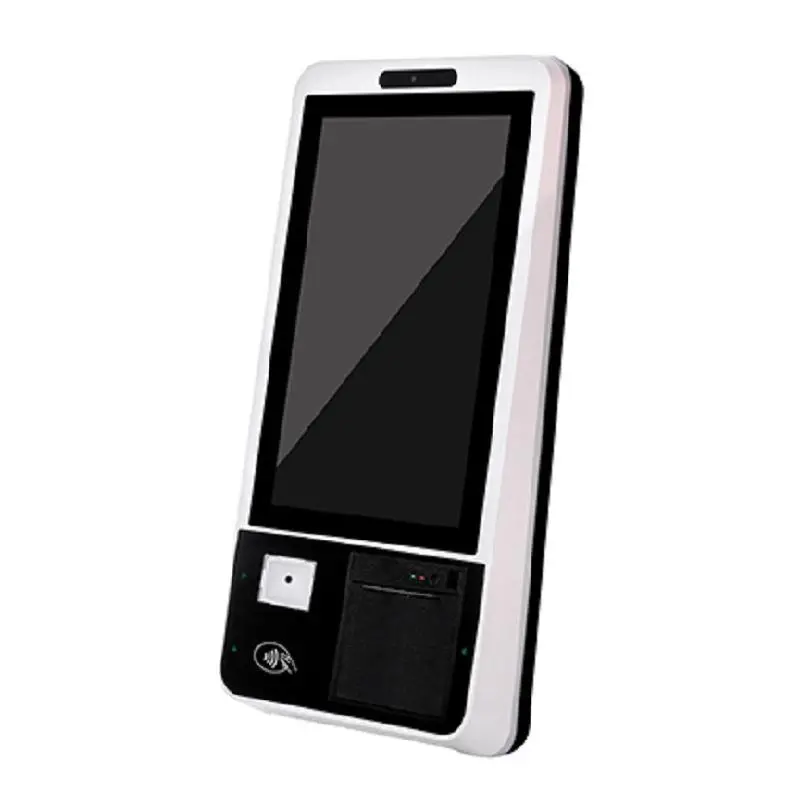

Advantech UTK-615AP 15.6" Mini Self-Service Kiosk with ARM Cortex™ Processor and PCAP Touchscreen
