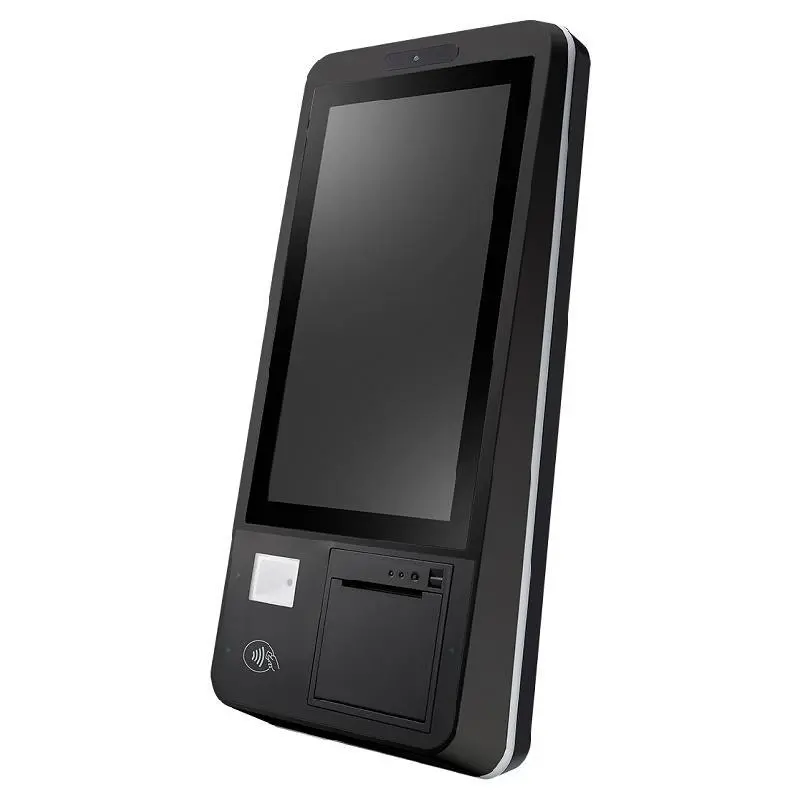

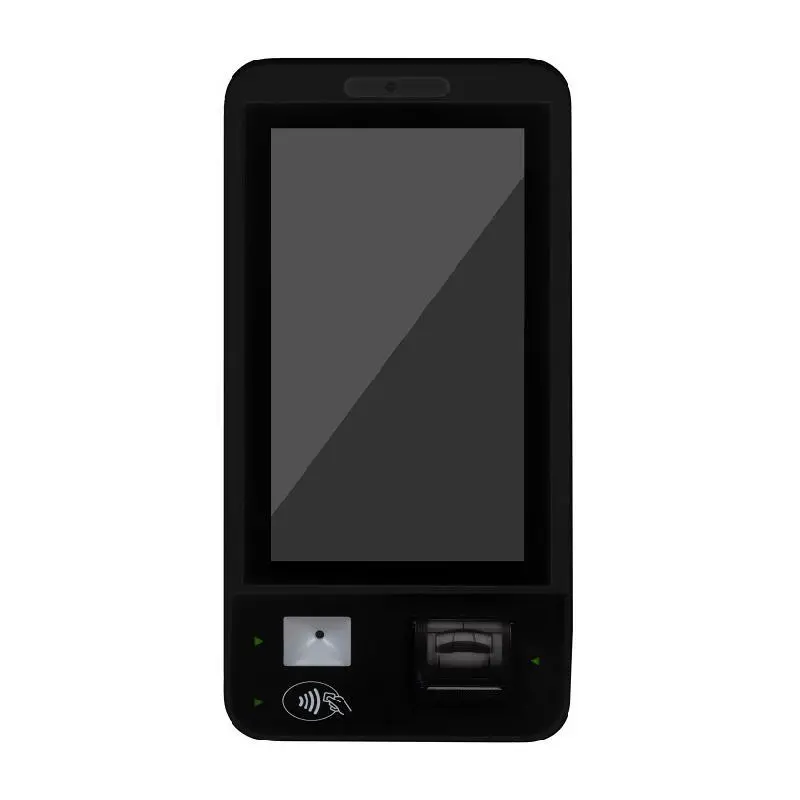

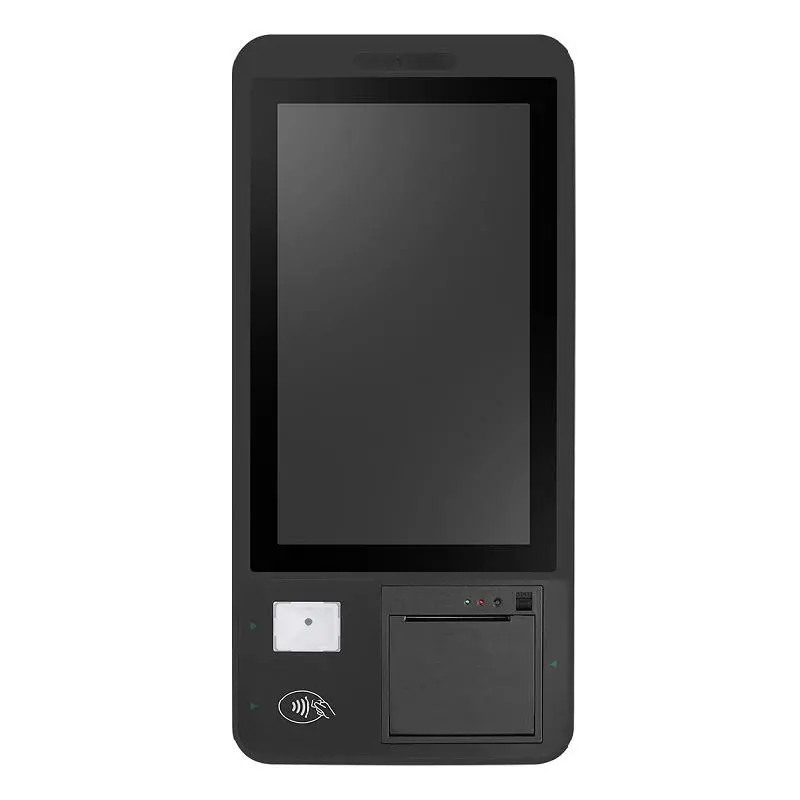

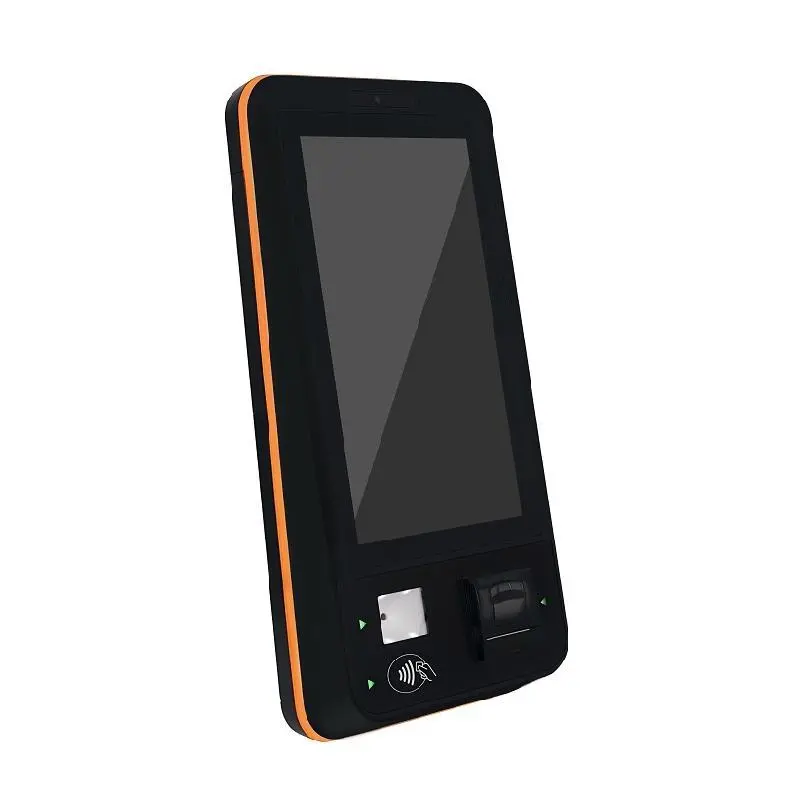

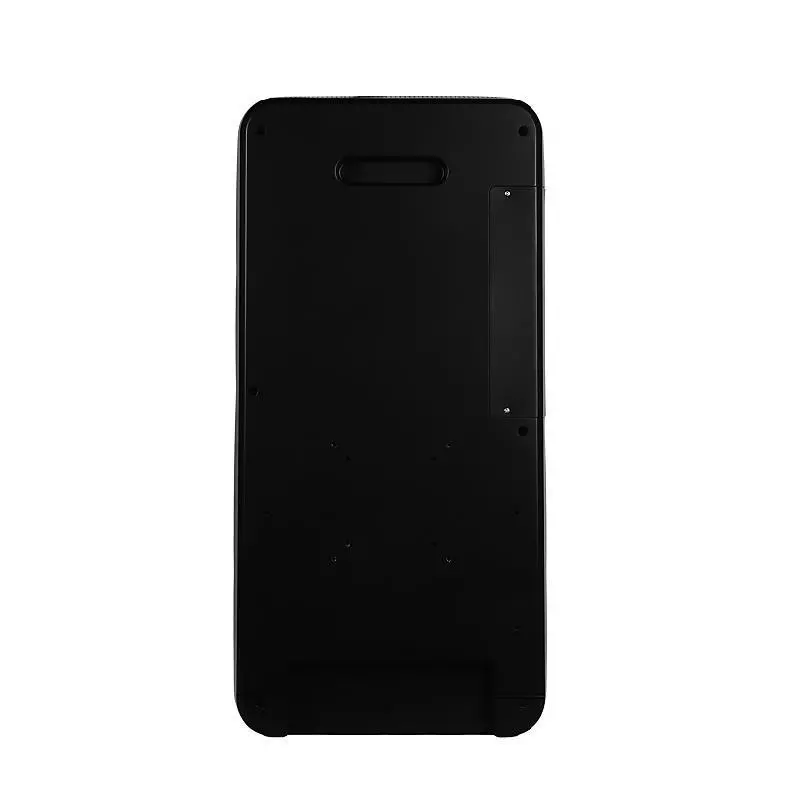

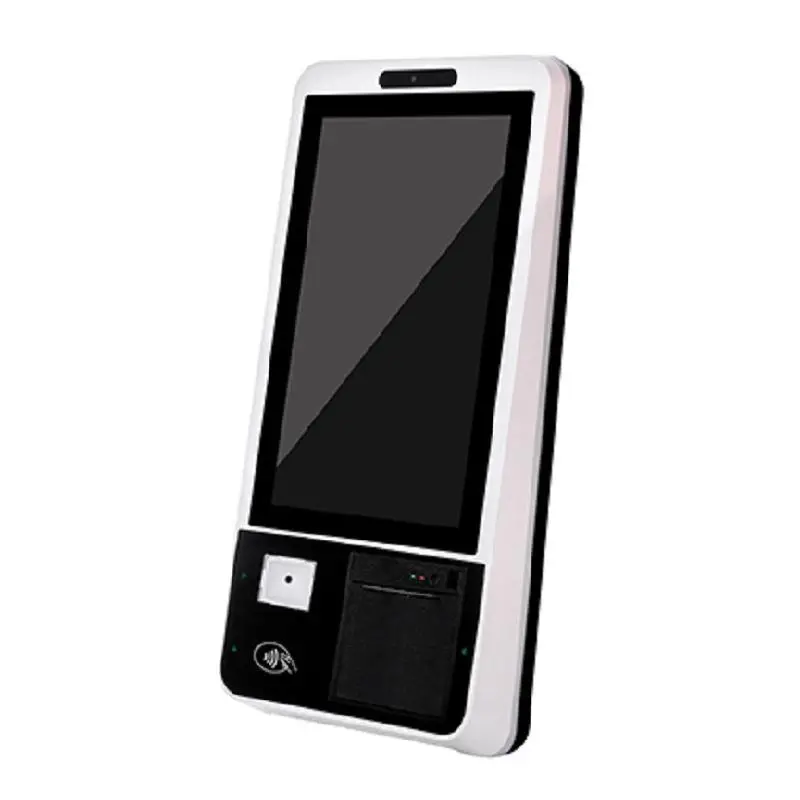

Advantech UTK-615DP 15.6" Mini Self-Service Kiosk with Intel® Celeron® J1900 Processor and PCAP Touchscreen

    Compact and lightweight for convenient installation in space-limited environments

    Colorful eye-catching LED indicators ensure intuitive operation

    Modularized design allows for easy upgrades and function expansion

    Can be flexibly configured for various field applications and scenarios

    Multiple mounting options for easy installation

    Remote device control and management

UTK-615DP-VFW81 UTK-615DP-VFB81
Color Color White Black
Display Size 15.6" TFT LCD 15.6" TFT LCD
Display Max. Resolution FHD (1920 x 1080) FHD (1920 x 1080)
Display Brightness 220 cd/m² 220 cd/m²
Touch Screen Type Projected Capacitive Projected Capacitive
Processor System CPU Intel® Celeron® J1900 2.0GHz, Turbo boost up to 2.42GHz Intel® Celeron® J1900 2.0GHz, Turbo boost up to 2.42GHz
Processor System RAM 4GB DDR3L 1333MHz 4GB DDR3L 1333MHz
Processor System Storage 128G SSD 128G SSD
Processor System OS Windows 10 IoT Enterprise 64bit Windows 10 IoT Enterprise 64bit
I/O Interface Serial Port 1 x COM (RS-232) 1 x COM (RS-232)
I/O Interface USB Port 1 x USB 2.0 1 x USB 2.0
I/O Interface Ethernet 1 x RJ-45 Gigabit Ethernet (10/100/1000) 1 x RJ-45 Gigabit Ethernet (10/100/1000)
I/O Interface Speaker 2 x 2W Speaker 2 x 2W Speaker
Environment Operating Temperature 0~40° C 0~40° C
Environment Operating Humidity 10 ~ 95% @ 40°C non-condensing 10 ~ 95% @ 40°C non-condensing
Power Input Rating 12 V/5 A (60 W ITE Adapter) 12 V/5 A (60 W ITE Adapter)
Peripheral Bluetooth Bluetooth® v4.2 Bluetooth® v4.2
Peripheral Barcode Scanner 1D/2D Barcode Scanner 1D/2D Barcode Scanner
Peripheral GPS LTE + GPS communication module (optional) LTE + GPS communication module (optional)
Peripheral Smart Card Reader optional optional
Peripheral NFC/RFID Reader optional optional
Peripheral Camera 720p web camera module; Structured-light 3D scanner (optional) 720p web camera module; Structured-light 3D scanner (optional)
Peripheral Printer 80 mm thermal printer (default); 58 mm thermal printer (optional) 80 mm thermal printer (default); 58 mm thermal printer (optional)
Peripheral Battery Pack 8400 mAh battery pack (optional) 8400 mAh battery pack (optional)
