| UTC-100P-B11E | ||
| Interface | Interface | USB (Cable Length:50cm) |
| Scanning Performance | Illumination & Aiming | White LED illumination; Red LED dot aimer |
| Scanning Performance | Typical frame rate | 30 frames per second |
| Scanning Performance | Motion Tolerance | Up to 100 cm/s (4 in/s) for 13 mil UPC at optimal focus |
| Scanning Performance | Field of View | Horizontal: 37.8°, Vertical: 28.8° |
| Scanning Performance | Scan angle | Tilt: 360°, Pitch: ± 45°, Skew: ± 45° |
| Scanning Performance | Symbol Contrast | 35% minimum print contrast ratio |
| Typical Reading Distances Standard | Typical Reading Distances Standard | SYMBOLOGY / X-DIM TYPICAL RANGE*100% UPC 55 mm to 280 mm (2.1 in to 11.0 in)5 MIL CODE 39 61 mm to 130 mm (2.4 in to 5.1 in)20 MIL CODE 39 60 mm to 380 mm (2.4 in to 15.0 in)6.7 MIL PDF417 60 mm to 125 mm (2.4 in to 4.9 in)10 MIL DATA MATRIX 60 mm to 130 mm (2.4 in to 5.1 in)20 MIL QR 50 mm to 230 mm (2.0 in to 9.0 in)* Typical performance may be impacted by barcode quality and environmentalconditions. |
| Symbologies | Linear | Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13,EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A,UPC E, UPC-A/EAN-13 with Extended coupon Code, Coupon GS1 Code 32(PARAF), EANUCCEmulation, GS1 Data bar |
| OS Support | OS Support | Windows 10 & Android |
| Dimensions | Dimensions | 100 x 37 x 53 mm |
| Operating Temperature | Operating Temperature | -10°C to 40°C |

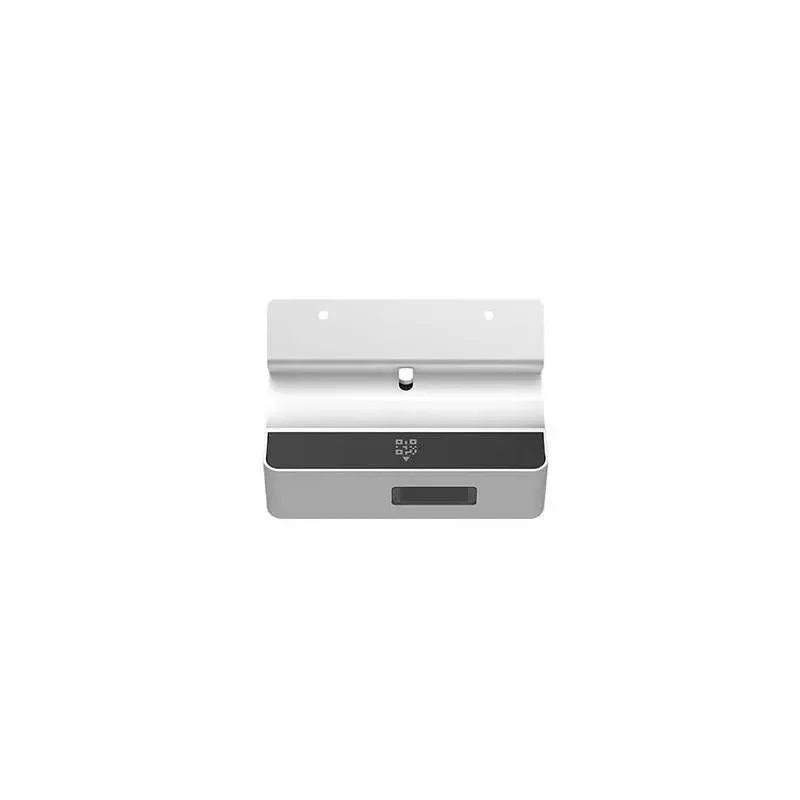

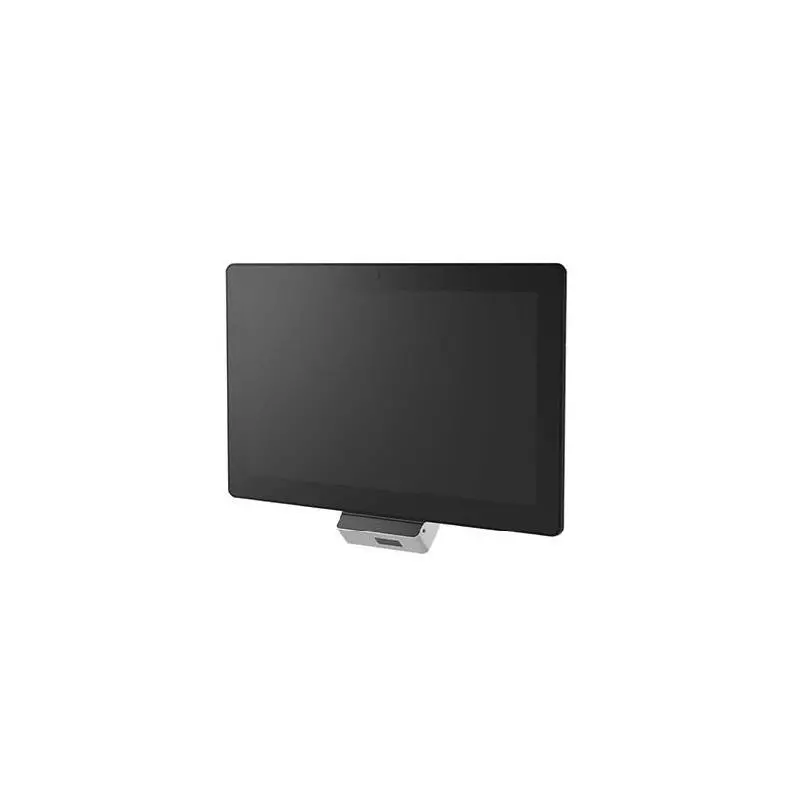

Advantech UTC-100P-B 2D Barcode module for UTC-100 Series
