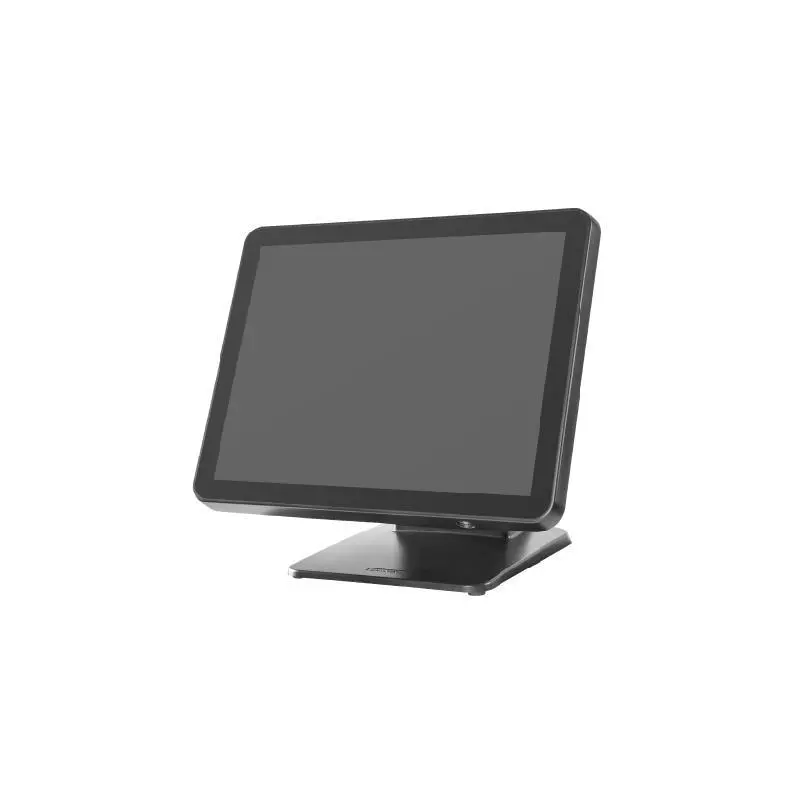

Advantech UPOS-211K 15" 4:3 Compact All-in-One POS System with an Intel® N50/N97/Core™ i3-N305 Processor.

    15" TFT LCD (LED backlight) with PCAP touch

    Built-in an Intel® N50/N97/Core™ i3-N305 processor

    Expandable I/O interface with USB-C and dual LAN connectivity

    Supports Windows 10 IoT, Windows 11 IoT, and Linux OS

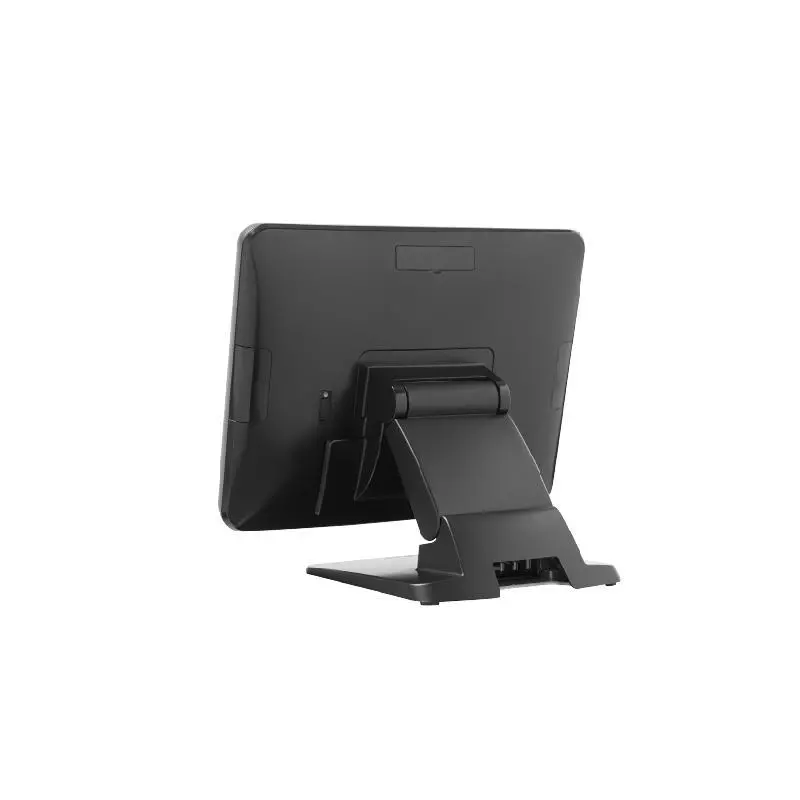

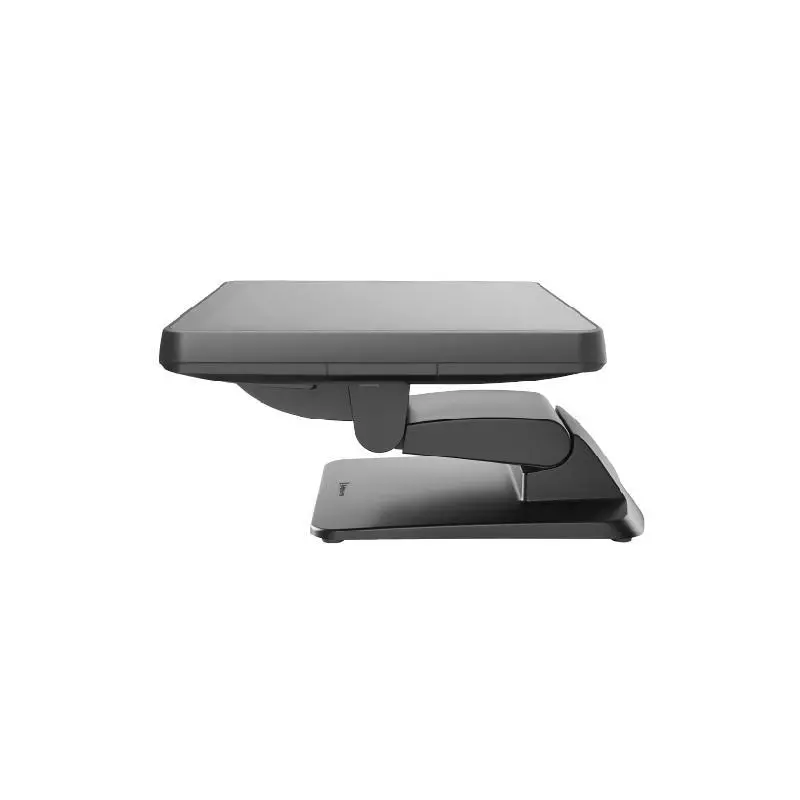

    Compact footprint with a foldable dual-hinge stand

    Fanless design for dust-free and noiseless operation

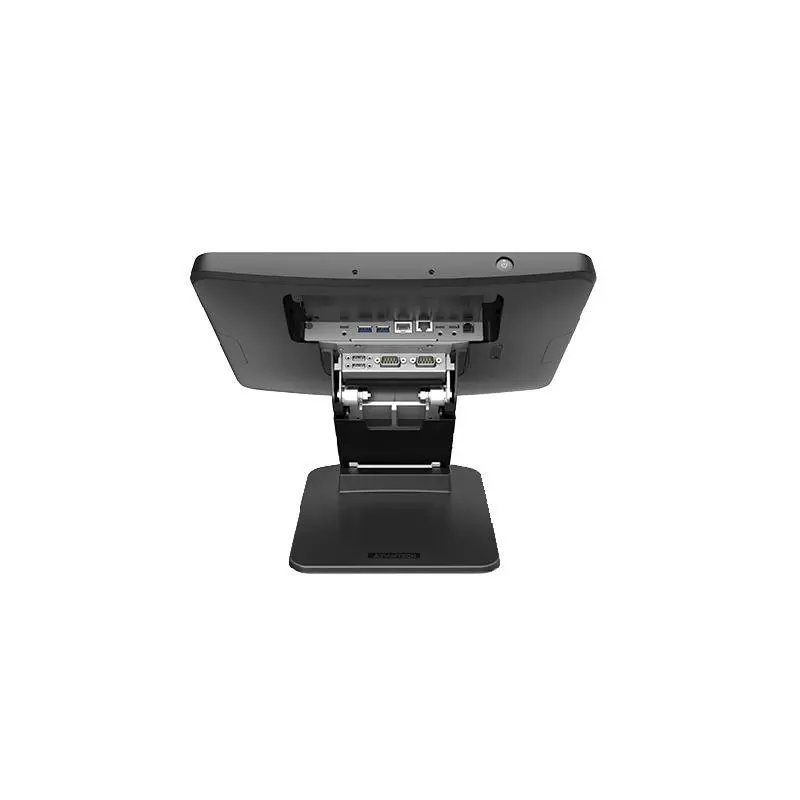

    Clear cable management and easy access to the hard drive and USB ports

    Versatile peripherals and mounting options available

UPOS-211KP-BN940 UPOS-211KP-BI340 UPOS-211KP-BN900 UPOS-211KP-WN940
Processor System CPU Intel® N97 Intel® Core™ i3-N305 Intel® N97 Intel® N97
Memory Max. Capacity 16 GB 16 GB 16 GB 16 GB
Memory Technology DDR5-4800 DDR5-4800 DDR5-4800 DDR5-4800
Memory Socket 1 x 262 pin SO-DIMM 1 x 262 pin SO-DIMM 1 x 262 pin SO-DIMM 1 x 262 pin SO-DIMM
Storage SATA 1 x 2.5" SATA HDD/SSD connector, SATA 3.0 (6.0 Gb/S) 1 x 2.5" SATA HDD/SSD connector, SATA 3.0 (6.0 Gb/S) 1 x 2.5" SATA HDD/SSD connector, SATA 3.0 (6.0 Gb/S) 1 x 2.5" SATA HDD/SSD connector, SATA 3.0 (6.0 Gb/S)
Processor System OS Windows 10/11, Linux Windows 10/11, Linux Windows 10/11, Linux Windows 10/11, Linux
Touch Screen Type Projected Capacitive Touch Panel (Pcap. Flat Glass) Projected Capacitive Touch Panel (Pcap. Flat Glass) Projected Capacitive Touch Panel (Pcap. Flat Glass) Projected Capacitive Touch Panel (Pcap. Flat Glass)
Expansion M.2 2230 1 1 1 1
Expansion M.2 2280 1 1 1 1
Power Supply Input Voltage 65W power adapter 65W power adapter 65W power adapter 65W power adapter
Display Size 15" TFT LCD (1024 x 768) 15" TFT LCD (1024 x 768) 15" TFT LCD (1024 x 768) 15" TFT LCD (1024 x 768)
Display Brightness 300 cd/m² 300 cd/m² 300 cd/m² 300 cd/m²
I/O Interface Serial Port 2 x COM 2 x COM 2 x COM 2 x COM
I/O Interface USB Port 3 x USB 2.0, 2 x USB 3.2, 2 x USB-C 3 x USB 2.0, 2 x USB 3.2, 2 x USB-C 3 x USB 2.0, 2 x USB 3.2, 2 x USB-C 3 x USB 2.0, 2 x USB 3.2, 2 x USB-C
I/O Interface Audio 1 x 2 W Speaker 1 x 2 W Speaker 1 x 2 W Speaker 1 x 2 W Speaker
I/O Interface Ethernet 2 x 2.5G LAN 2 x 2.5G LAN 2 x 2.5G LAN 2 x 2.5G LAN
I/O Interface Output 1 x USB-C 1 x USB-C 1 x USB-C 1 x USB-C
I/O Interface Cash Drawer 1 x RJ11 1 x RJ11 1 x RJ11 1 x RJ11
Environment System Protection IP65 front panel IP65 front panel IP65 front panel IP65 front panel
Color Color Black Black Black White
Peripheral Stand Included Included N/A Included
