Advantech USC-360H 15.6" Ultra-slim all-in-one POS system equipped with Intel® Celeron® 6305E/ Core™ i3-1115G4E/ Core™ i5-1145G7E

    Supports Windows 10/11 or Linux operating systems

    Compatible with a wide range of periphearls for retail and hospitality applications

    Flexible installations with various mount options, such as the dual hinge stand, pole mount, Avalo stand, and VESA mount

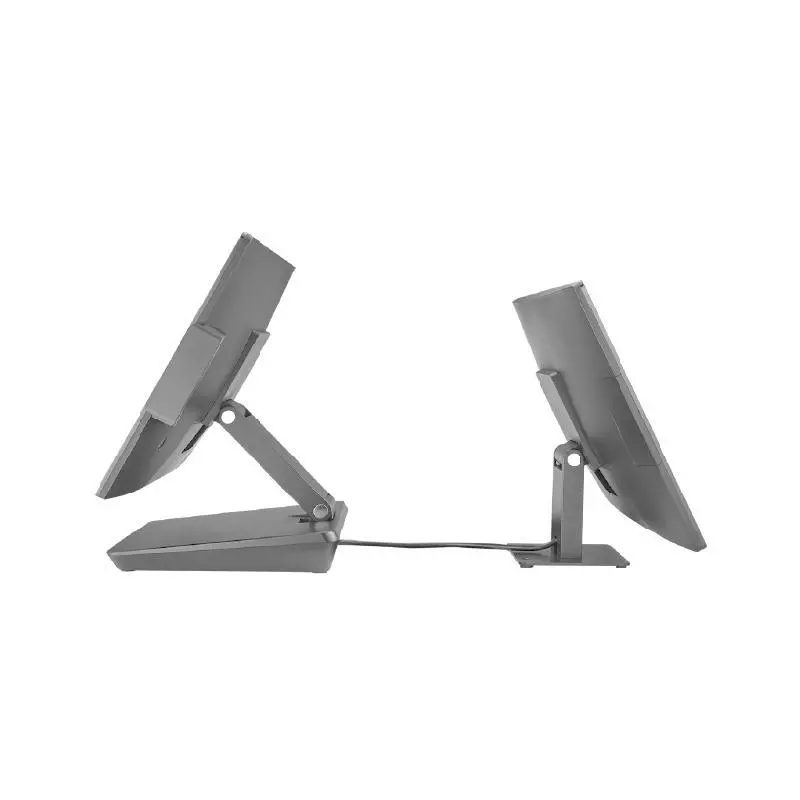

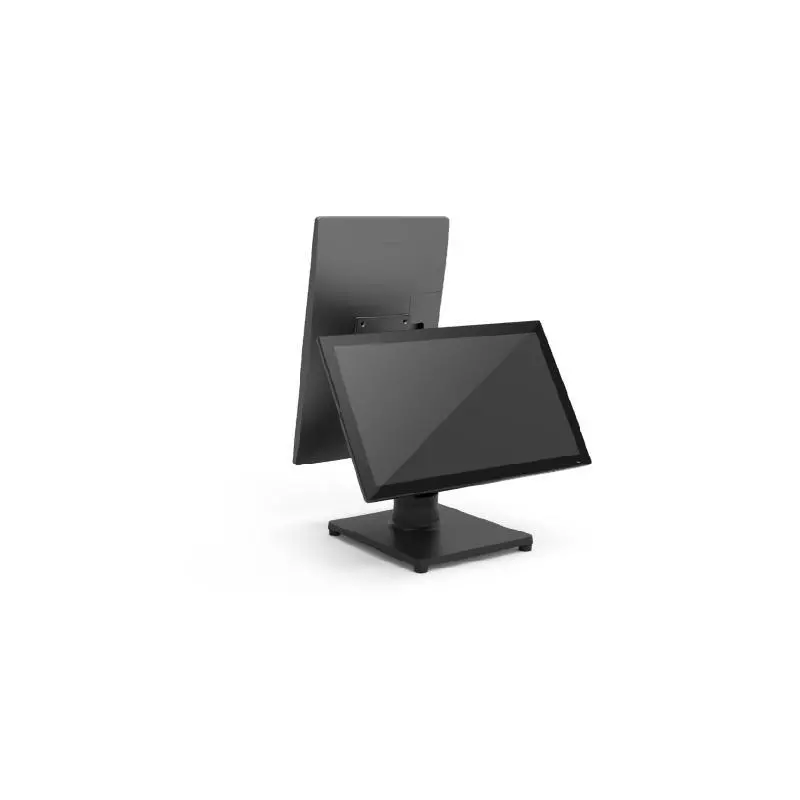

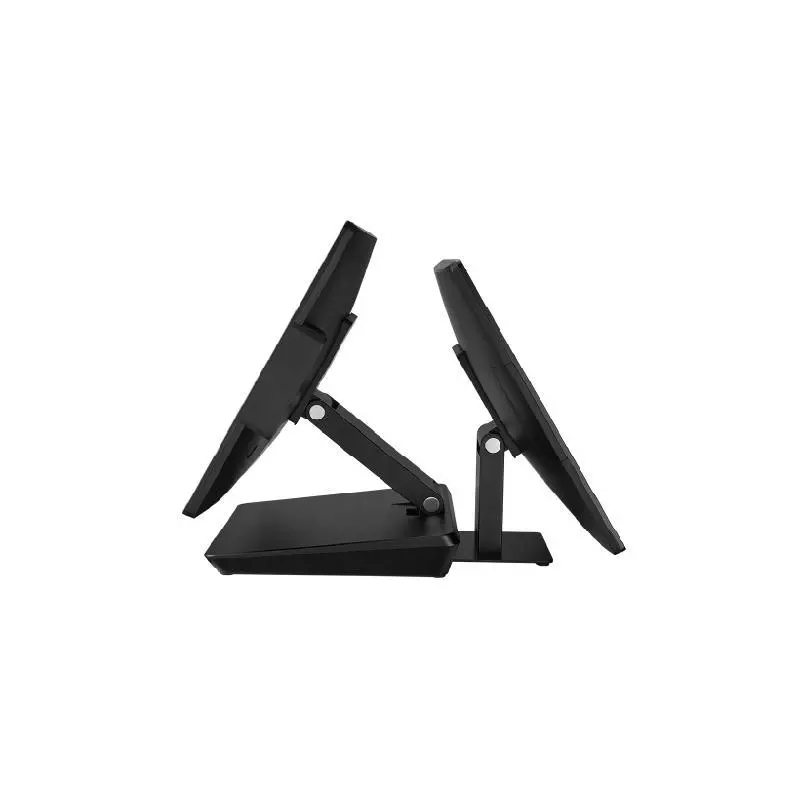

    Supports both integrated and separate 2nd display installation

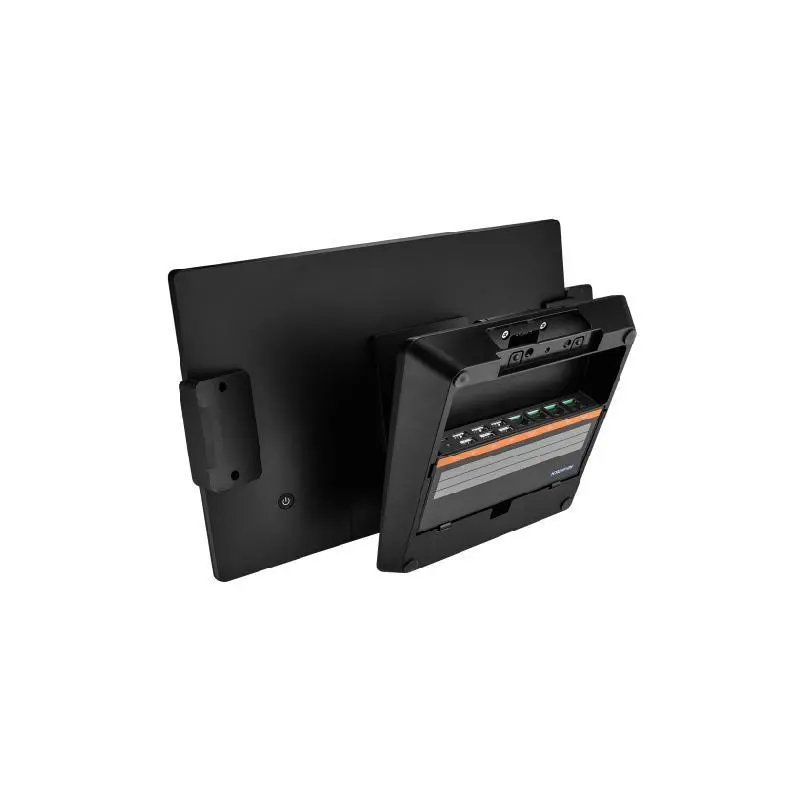

    Optional extendable I/O hub linked through Type-C cable

    Second display connected through USB Type-C cable which provides power, audio, and video

    USC-360H with processors Intel® Core™ i3-1115G4E/Core™ i5-1145G7E are certified with Google ChromeOS Flex

USC-360HP-BCL40 USC-360HP-BI340 USC-360HP-BI540 USC-360HP-BI541
Processor System CPU Intel® Celeron® 6305E Intel® Core™ i3-1115G4E Intel® Core™ i5-1145G7E Intel® Core™ i5-1145G7E
Processor System RAM 4G DDR4 8G DDR4 8G DDR4 8G DDR4
Processor System Storage 128G SSD 128G SSD 128G SSD 256G SSD
Processor System OS Windows 10/11, Linux Windows 10/11, Linux Windows 10/11, Linux Windows 10/11, Linux
I/O Interface USB Port 3 x USB-C , 2 x USB 3.0, 2 x USB 2.0 3 x USB-C , 2 x USB 3.0, 2 x USB 2.0 3 x USB-C , 2 x USB 3.0, 2 x USB 2.0 3 x USB-C , 2 x USB 3.0, 2 x USB 2.0
I/O Interface Ethernet 1 x RJ-45 Intel Gigabit Ethernet(10/100/1000), I219LM 1 x RJ-45 Intel Gigabit Ethernet(10/100/1000), I219LM 1 x RJ-45 Intel Gigabit Ethernet(10/100/1000), I219LM 1 x RJ-45 Intel Gigabit Ethernet(10/100/1000), I219LM
I/O Interface Audio 2 x 2W speaker installed. 1 x Line out 2 x 2W speaker installed. 1 x Line out 2 x 2W speaker installed. 1 x Line out 2 x 2W speaker installed. 1 x Line out
Power Supply Input Voltage 65W via power adapter 65W via power adapter 65W via power adapter 65W via power adapter
Display Size 15.6" TFT LCD 15.6" TFT LCD 15.6" TFT LCD 15.6" TFT LCD
Touch Screen Type Projected Capacitive Touch Panel (Pcap. Flat Glass) Projected Capacitive Touch Panel (Pcap. Flat Glass) Projected Capacitive Touch Panel (Pcap. Flat Glass) Projected Capacitive Touch Panel (Pcap. Flat Glass)
Color Color Black Black Black Black
Environment Operating Temperature 0~40° C 0~40° C 0~40° C 0~40° C
Dimensions Dimensions 381 x 230.4 x 31.5 mm 381 x 230.4 x 31.5 mm 381 x 230.4 x 31.5 mm 381 x 230.4 x 31.5 mm
Weight (kg) Weight (kg) 4 Kg (Net); 4.5 Kg (Gross) 4 Kg (Net); 4.5 Kg (Gross) 4 Kg (Net); 4.5 Kg (Gross) 4 Kg (Net); 4.5 Kg (Gross)
Environment Certification FCC, CE, CCC, BSMI, UL, CB FCC, CE, CCC, BSMI, UL, CB FCC, CE, CCC, BSMI, UL, CB FCC, CE, CCC, BSMI, UL, CB
