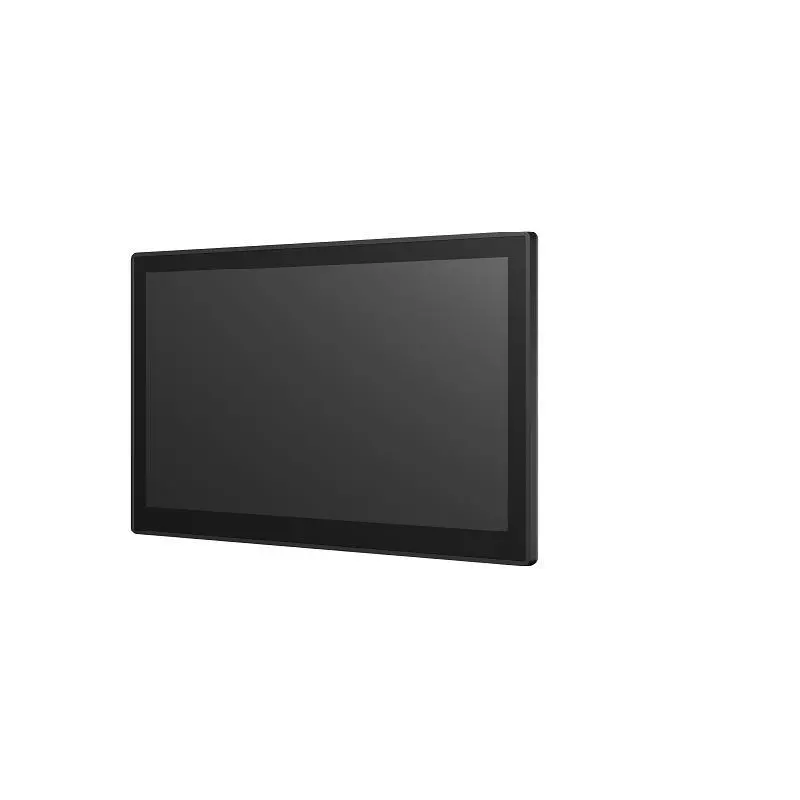

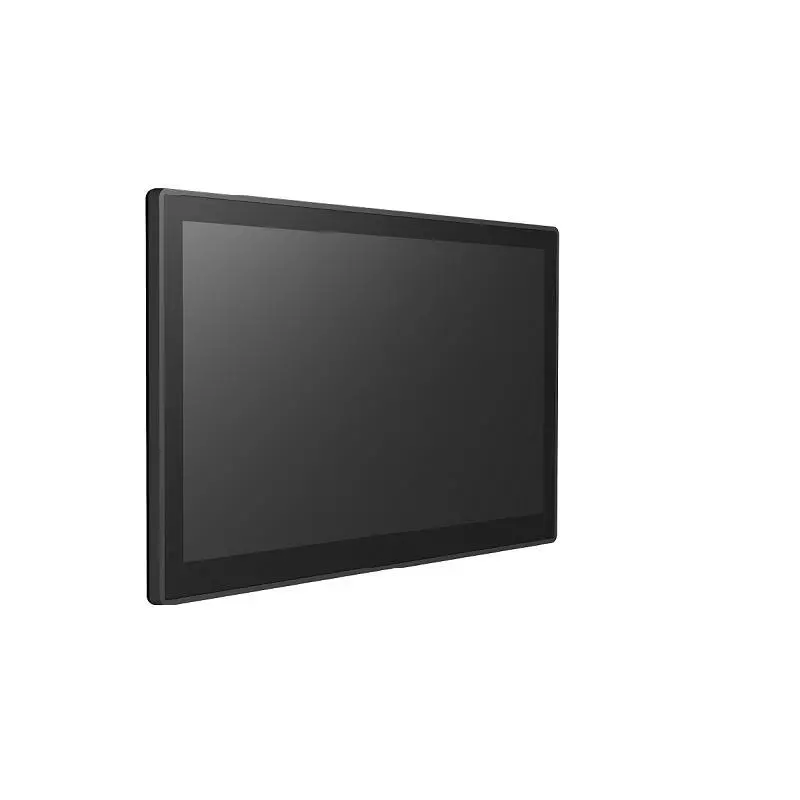

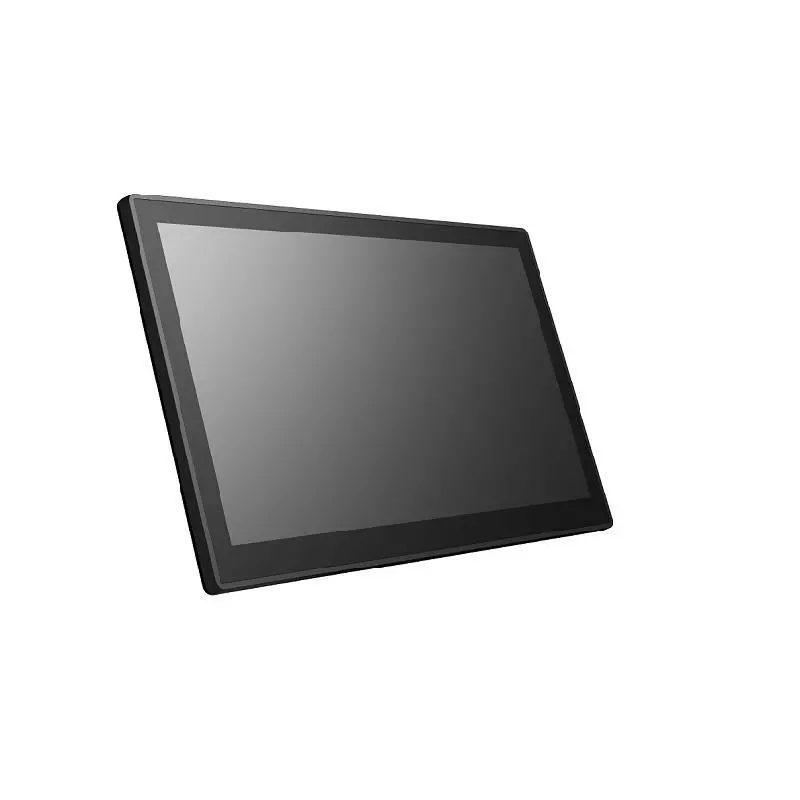

Advantech USC-M6 15.6" 16:9 P-CAP Touchscreen Monitor with 1366x768 or 1920x1080 Resolution (Non-Touch Option Available)

15.6" TFT LCD with LED backlight

16:9 aspect ratio with 1366 x 768 or 1920 x 1080 resolution

Default with P-CAP touch (non-touch option available)

IP65-rated front panel

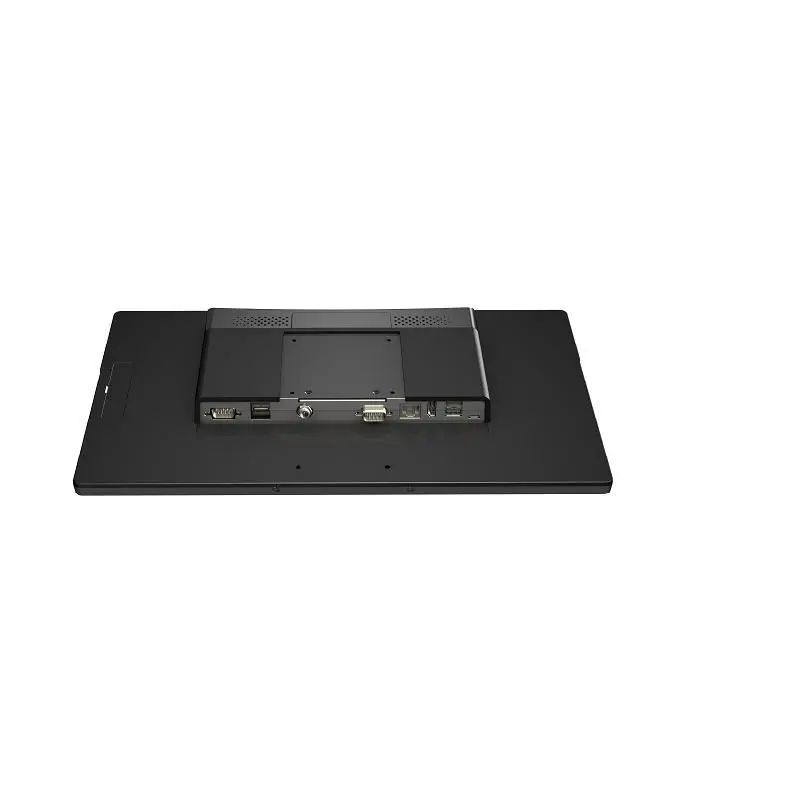

VGA/HDMI connections

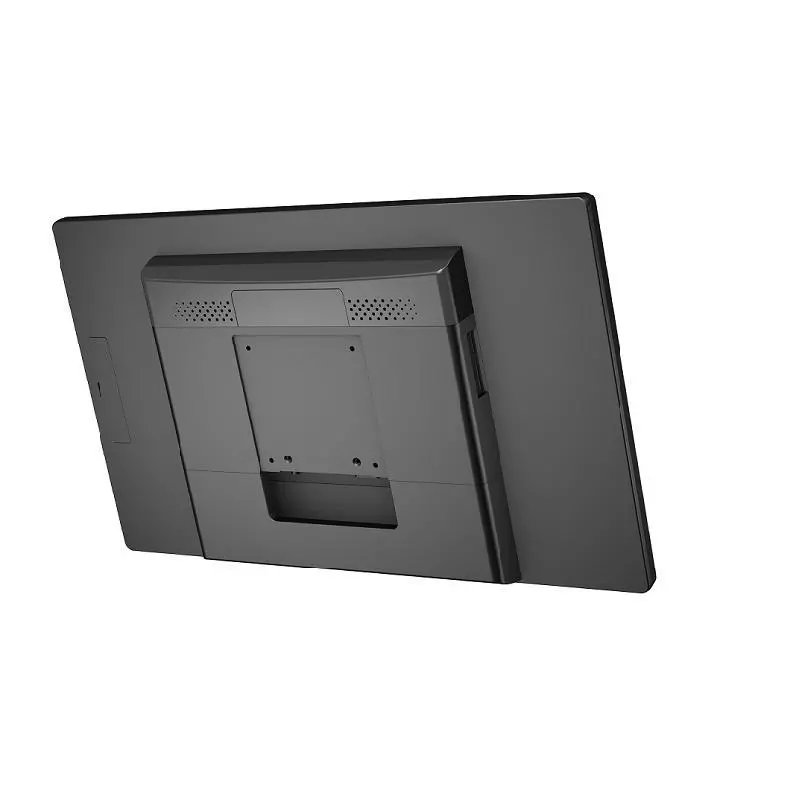

VESA 75 x 75 mounting available

Reserved right- and bottom-side hatches for optional peripherals

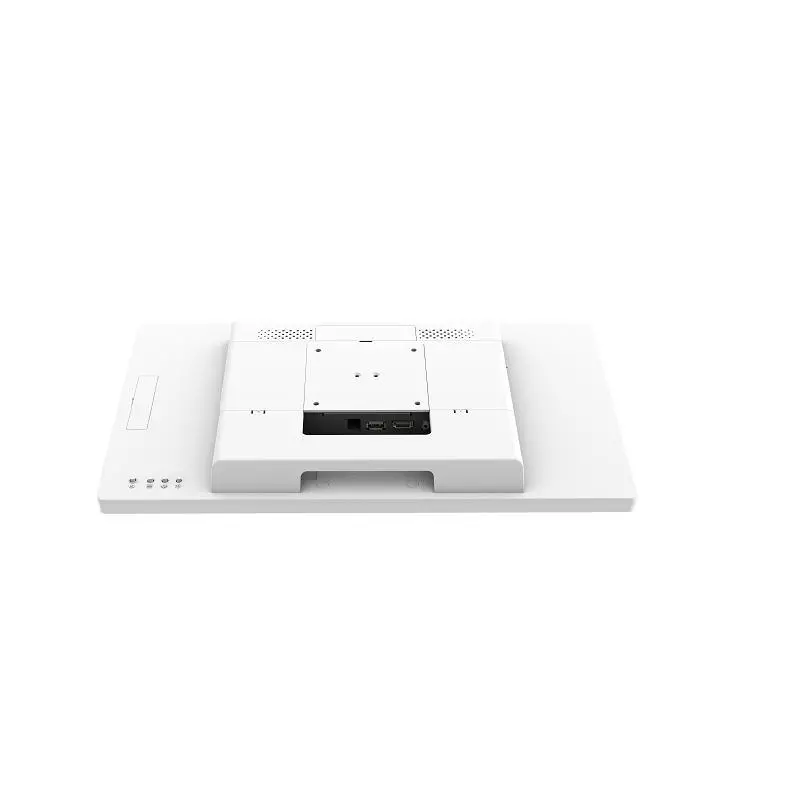

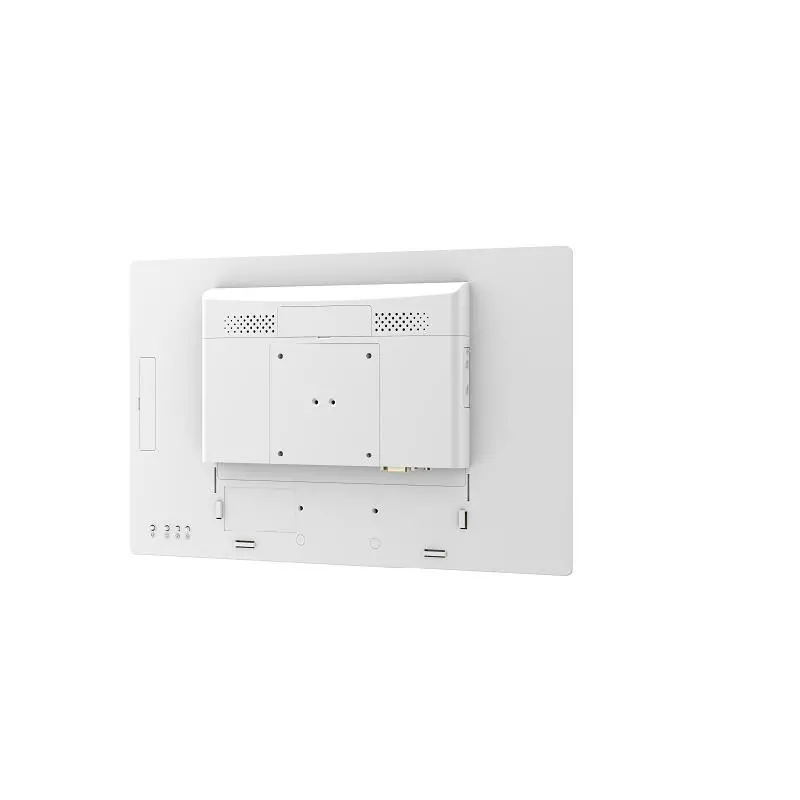

Color: black/white

		USC-M6P-BST00	USC-M6P-BST03	USC-M6P-BST10	USC-M6G-BST00
Display	Size	15.6" TFT LCD	15.6" TFT LCD	15.6" TFT LCD	15.6" TFT LCD
Display	Max. Resolution	1366 x 768	1366 x 768	1920 x 1080	1366 x 768
Touch Screen	Type	P-CAP	P-CAP	P-CAP	Glass Panel (No touch function)
Display	Ratio	16:9	16:9	16:9	16:9
Display	Brightness	220 cd/m²	220 cd/m²	300 cd/m²	220 cd/m²
Input	Signal Input	VGA/HDMI	VGA/HDMI	VGA/HDMI	VGA/HDMI
I/O Interface	Speaker	2 x 2W Speaker	2 x 2W Speaker	2 x 2W Speaker	2 x 2W Speaker
Power Supply	Input Voltage	12V DC	12V DC	12V DC	12V DC
VESA Mounting Patterns	VESA Mounting Patterns	75 x 75 mm	75 x 75 mm	75 x 75 mm	75 x 75 mm
Modular Option	Built-in Function	N/A	RFID/Camera	N/A	N/A
Modular Option	Add-on Module	MSR, iButton	MSR, iButton	MSR, iButton	MSR, iButton
Operating Temperature	External Power	0 ~ 40° C	0 ~ 40° C	0 ~ 40° C	0 ~ 40° C
Environment	Operating Humidity	10 ~ 95% @ 40°C non-condensing	10 ~ 95% @ 40°C non-condensing	10 ~ 95% @ 40°C non-condensing	10 ~ 95% @ 40°C non-condensing
Color	Color	Black	Black	Black	Black
