Advantech USC-M10 10.1" 16:9 P-CAP Touchscreen Monitor with 1280x800 Resolution (Non-Touch Option Available)

    10.1" TFT LCD with LED backlight

    16:10 aspect ratio with 1280 x 800 resolution

    Default with P-CAP touch (non-touch option available)

    IP65-rated front panel

    USB-C connection

    Supports Windows/Linux/Android OS

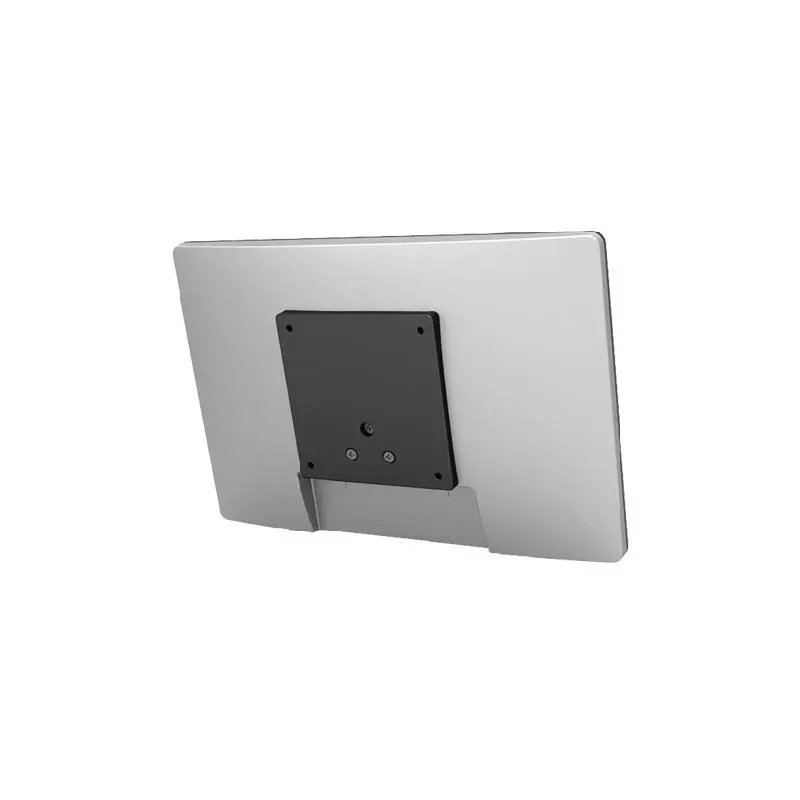

    VESA 75 x 75 mounting and single hinge stand available

    Color: black/space grey/silver

USC-M10G-STC03 USC-M10P-STC00 USC-M10P-GTC00 USC-M10G-GTC00 USC-M10P-BTC00 USC-M10P-BTC01 USC-M10P-BTC03 USC-M10G-BTC01 USC-M10G-BTC03 USC-M10G-BTC00
Display Size 10.1" TFT LCD with LED backlight 10.1" TFT LCD with LED backlight 10.1" TFT LCD with LED backlight 10.1" TFT LCD with LED backlight 10.1" TFT LCD with LED backlight 10.1" TFT LCD with LED backlight 10.1" TFT LCD with LED backlight 10.1" TFT LCD with LED backlight 10.1" TFT LCD with LED backlight 10.1" TFT LCD with LED backlight
Display Ratio 16:10 16:10 16:10 16:10 16:10 16:10 16:10 16:10 16:10 16:10
Display Max. Resolution 1280 x 800 1280 x 800 1280 x 800 1280 x 800 1280 x 800 1280 x 800 1280 x 800 1280 x 800 1280 x 800 1280 x 800
Display Brightness 350 cd/m² 350 cd/m² 350 cd/m² 350 cd/m² 350 cd/m² 350 cd/m² 350 cd/m² 350 cd/m² 350 cd/m² 350 cd/m²
Touch Screen Type Glass P-CAP P-CAP Glass P-CAP P-CAP P-CAP Glass Glass Glass
I/O Interface HDMI x 1 x 1 x 1 x 1 x 1 x 1 x 1 x 1 x 1 x 1
I/O Interface USB Port 1 X USB-C 1 X USB-C 1 X USB-C 1 X USB-C 1 X USB-C 1 X USB-C 1 X USB-C 1 X USB-C 1 X USB-C 1 X USB-C
Power Consumption External Power DC 12V DC 12V DC 12V DC 12V DC 12V DC 12V DC 12V DC 12V DC 12V DC 12V
VESA Mounting Patterns VESA Mounting Patterns N/A 75 x 75 mm 75 x 75 mm 75 x 75 mm 75 x 75 mm N/A N/A N/A N/A 75 x 75 mm
Color Color Silver Silver Space Grey Space Grey Black Black Black Black Black Black
Dimensions Dimensions 244.4 x 163 x 27 mm 244.4 x 163 x 27 mm 244.4 x 163 x 27 mm 244.4 x 163 x 27 mm 244.4 x 163 x 27 mm 244.4 x 163 x 27 mm 244.4 x 163 x 27 mm 244.4 x 163 x 27 mm 244.4 x 163 x 27 mm 244.4 x 163 x 27 mm
OS Support OS Support Windows, Linux, and Android Windows, Linux, and Android Windows, Linux, and Android Windows, Linux, and Android Windows, Linux, and Android Windows, Linux, and Android Windows, Linux, and Android Windows, Linux, and Android Windows, Linux, and Android Windows, Linux, and Android
Peripheral Stand Included N/A N/A N/A N/A N/A Included N/A Included N/A
Cable Length Cable Length 60 cm USB-C Cable N/A N/A N/A N/A 60 cm USB-C Cable 60 cm USB-C Cable 60 cm USB-C Cable 60 cm USB-C Cable N/A
