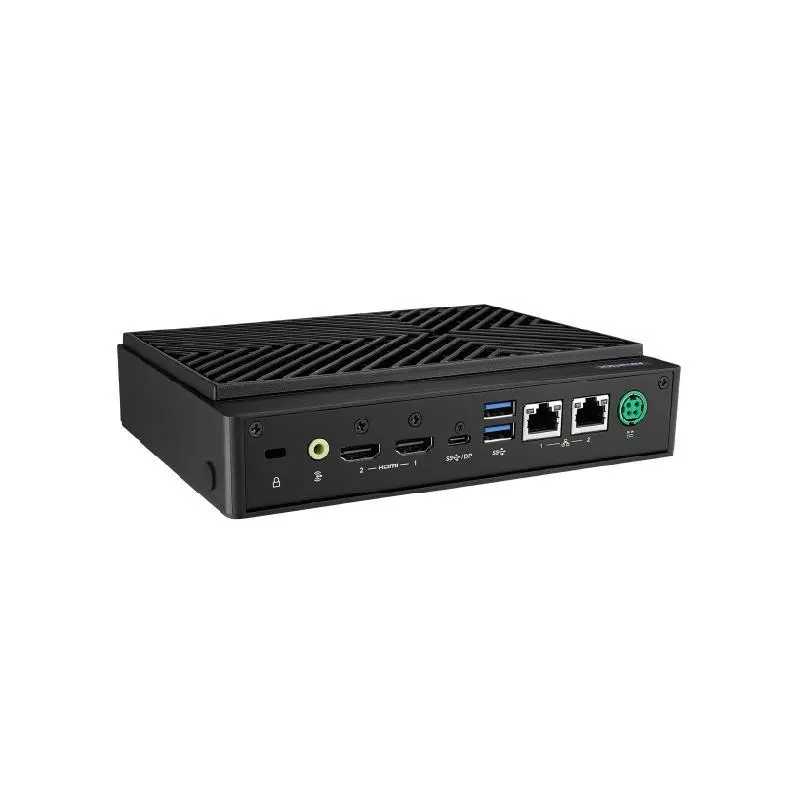

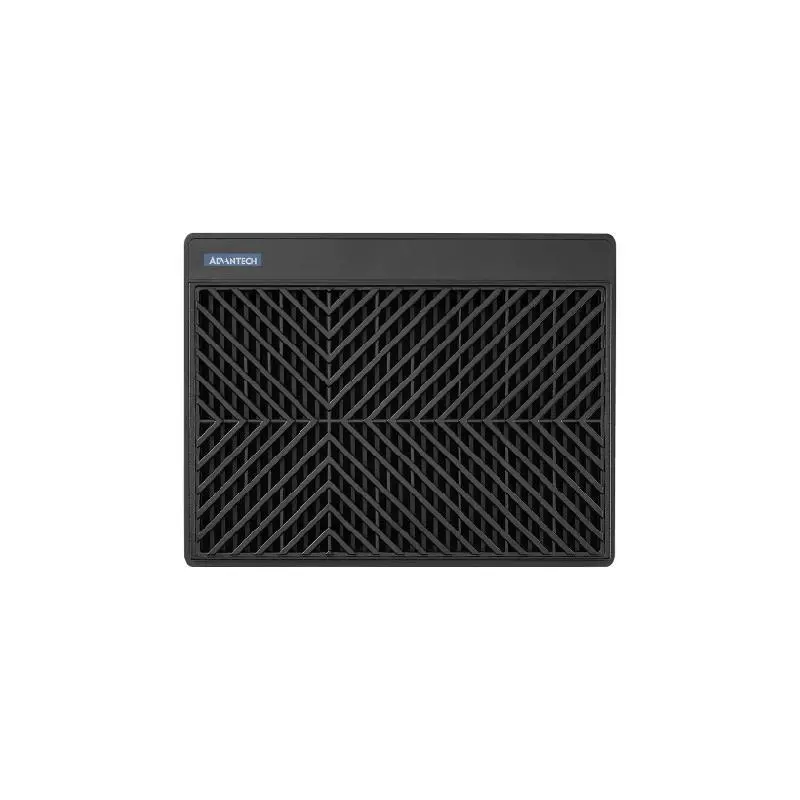

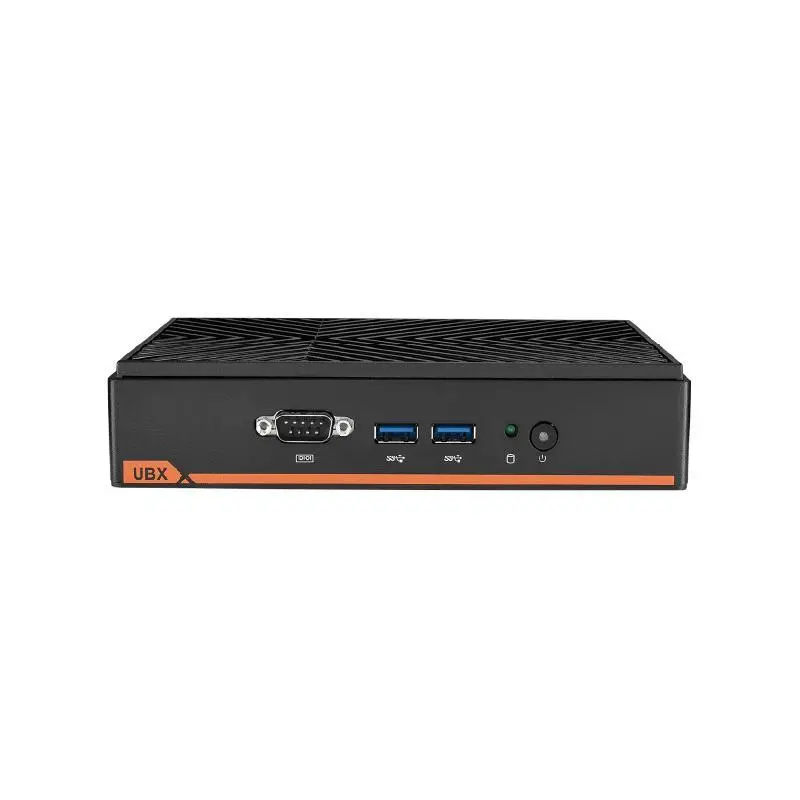

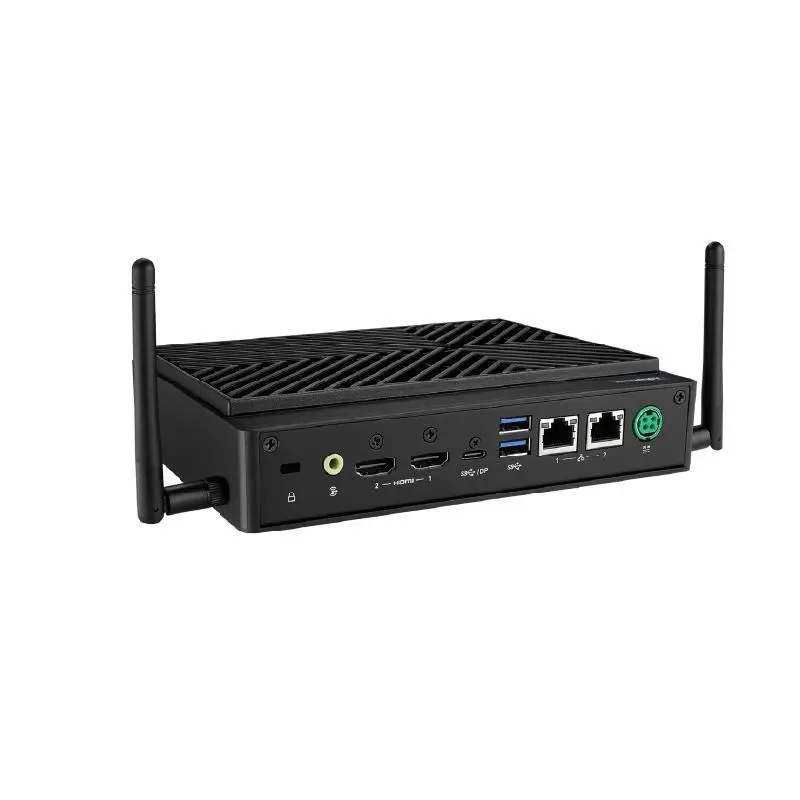

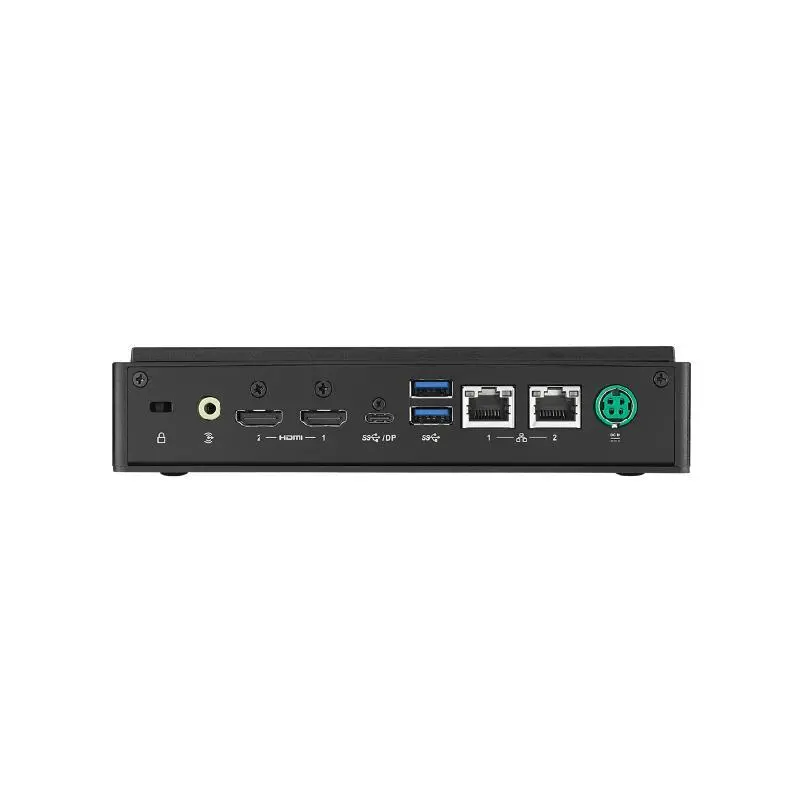

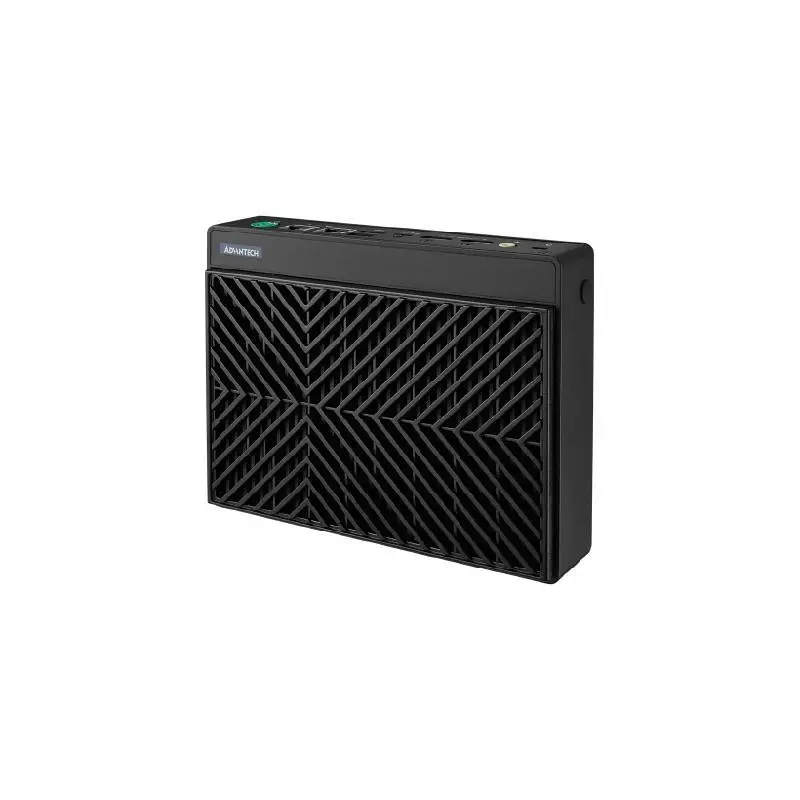

Advantech UBX-110K The UBX-110K is a 4K UHD fanless edge computer powered by an Intel® N97 or Core™ i3-N305 processor.

    Built-in an Intel® N97 or Core™ i3-N305 processor

    Built-in a TPM 2.0 chip for data encryption enhancement

    Supports triple displays to expand the visible range and provide detailed video content

    Supports two M.2 2280 SATA SSD expansions

    Supports up to 4K UHD for each video output

    The thermal isolation top cover ensures safe installation and user touch

    Supports Windows 10 IoT LTSC 2021, Windows 11 IoT, or Linux

UBX-110K-BN100 UBX-110K-BN200 UBX-110K-UN100 UBX-110K-UN200
Processor System CPU Intel® N97 Intel® Core™ i3-N305 Intel® N97 Intel® Core™ i3-N305
Processor System OS Windows 10 IoT LTSC 2021, Windows 11 IoT, Linux Windows 10 IoT LTSC 2021, Windows 11 IoT, Linux Windows 10 IoT LTSC 2021, Windows 11 IoT, Linux Windows 10 IoT LTSC 2021, Windows 11 IoT, Linux
Memory Technology DDR5-4800 DDR5-4800 DDR5-4800 DDR5-4800
Memory Max. Capacity 16 GB 16 GB 16 GB 16 GB
Image Resolution Triple Displays 4K UHD (4320 x 2160 @ 60Hz) HDMI 1 & 2: 4K UHD (4320 x 2160 @ 60Hz); USB-C: 1920 x 1080 @ 60Hz 4K UHD (4320 x 2160 @ 60Hz) HDMI 1 & 2: 4K UHD (4320 x 2160 @ 60Hz); USB-C: 1920 x 1080 @ 60Hz
Image Resolution Dual Displays 4K UHD (4320 x 2160 @ 60Hz) 4K UHD (4320 x 2160 @ 60Hz) 4K UHD (4320 x 2160 @ 60Hz) 4K UHD (4320 x 2160 @ 60Hz)
Expansion WiFi 1 x M.2 2230 1 x M.2 2230 1 x M.2 2230 1 x M.2 2230
Expansion Storage 2 x M.2 2280 2 x M.2 2280 2 x M.2 2280 2 x M.2 2280
I/O Interface Audio 1 x Line-out 1 x Line-out 1 x Line-out 1 x Line-out
I/O Interface COM 1 x DB9 1 x DB9 1 x DB9 1 x DB9
I/O Interface USB Port 1 x USB-C, 4 x USB 3.2 Gen2 Type A 1 x USB-C, 4 x USB 3.2 Gen2 Type A 1 x USB-C, 4 x USB 3.2 Gen2 Type A Front: USB 3.2 Gen 1 Type A X 2; Rear: USB-C X 1, USB 3.2 Gen 1 Type A X 2
I/O Interface Ethernet 2 x RJ-45 2 x RJ-45 2 x RJ-45 2 x RJ-45
I/O Interface Output 1 x USB-C, 2 x HDMI2.1 1 x USB-C, 2 x HDMI2.1 1 x USB-C, 2 x HDMI2.1 1 x USB-C, 2 x HDMI2.1
I/O Interface Power Jack 1 x DC 12V 1 x DC 12V 1 x DC 12V 1 x DC 12V
Power Supply Operating Temperature 0~ 45 °C 0~ 45 °C 0~ 45 °C 0~ 45 °C
Mounting Mounting VESA, Desk, Wall VESA, Desk, Wall VESA, Desk, Wall VESA, Desk, Wall
