| USM-110C-BD113 | ||
| Processor System | CPU | Rockchip RK3566 quad-core Cortex™-A55 |
| Processor System | GPU | Mali-G52 1-Core-2EE |
| Processor System | Graphics Engine | OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0 Full Profile |
| Processor System | Storage | 16GB eMMC |
| Processor System | OS | Android 12.0 |
| System | Memory | 2GB |
| Display | Max. Resolution | 4K (3840 x 2160) @ 60 Hz |
| I/O Interface | HDMI | x 1 |
| I/O Interface | Serial Port | N/A |
| I/O Interface | USB Port | 2 x USB 2.0 |
| I/O Interface | LAN | 1 x 10/100/1000 Mbps |
| I/O Interface | Audio | 1 x Line-out |
| Dimensions | Dimensions | 156 x 112 x 28 mm |
| Weight (kg) | Weight (kg) | 0.43 kg |
| Power | Input Rating | 12V/3A (36W ITE Adapter) |
| Power Consumption | External Power | DC Typical 15W; Max. 25W |

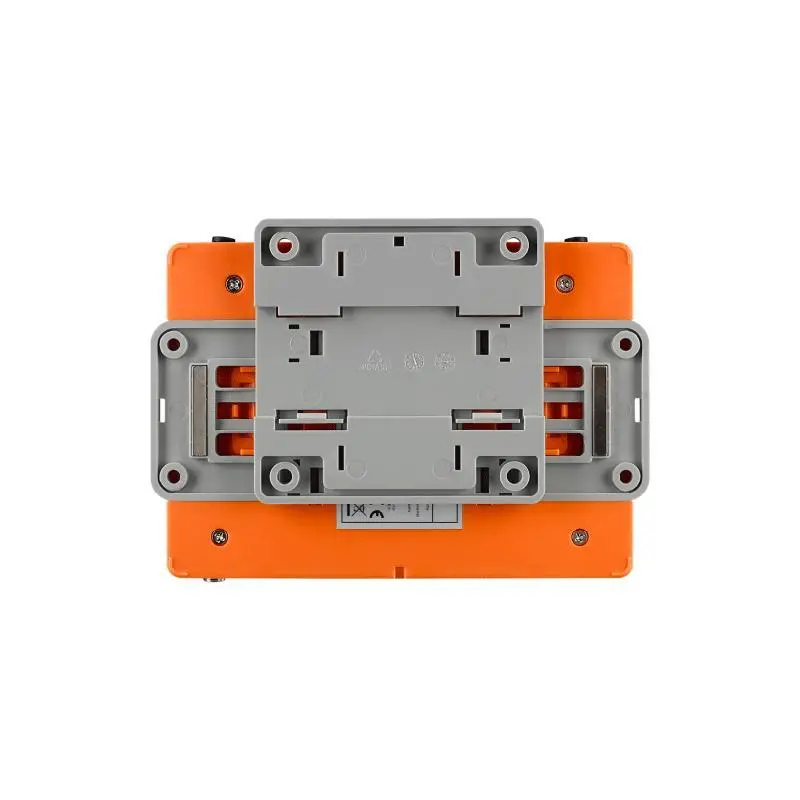

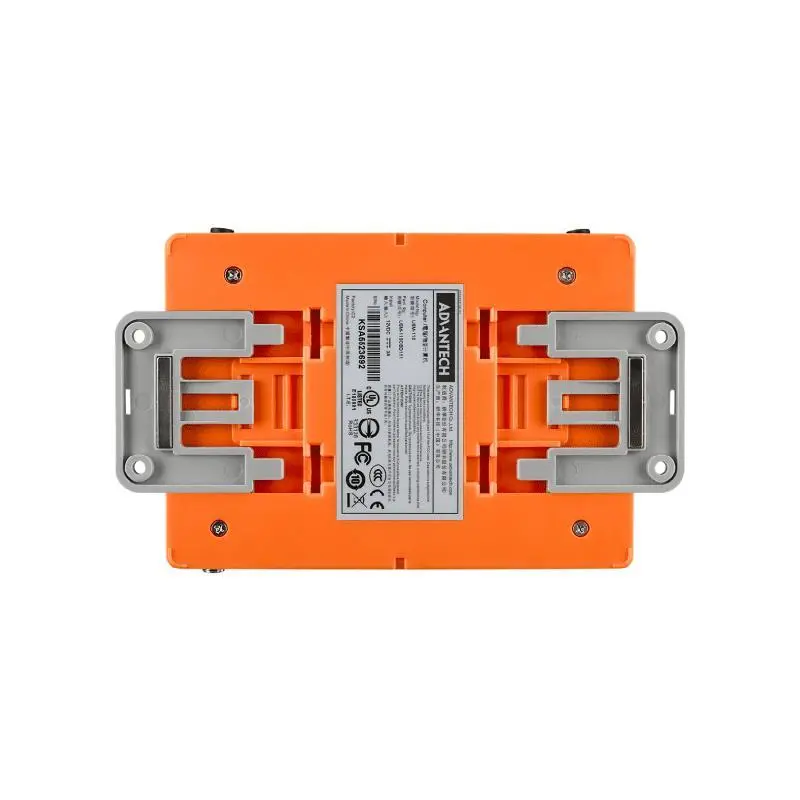

| Installation | Mout Options | VESA (75 x 75), wall, desktop, pole, magnet, DIN rail |
| OS Support | OS Support | Android 12.0 |
| Environment | Operating Temperature | 0 ~ 40 °C (32 ~ 104 °F) |

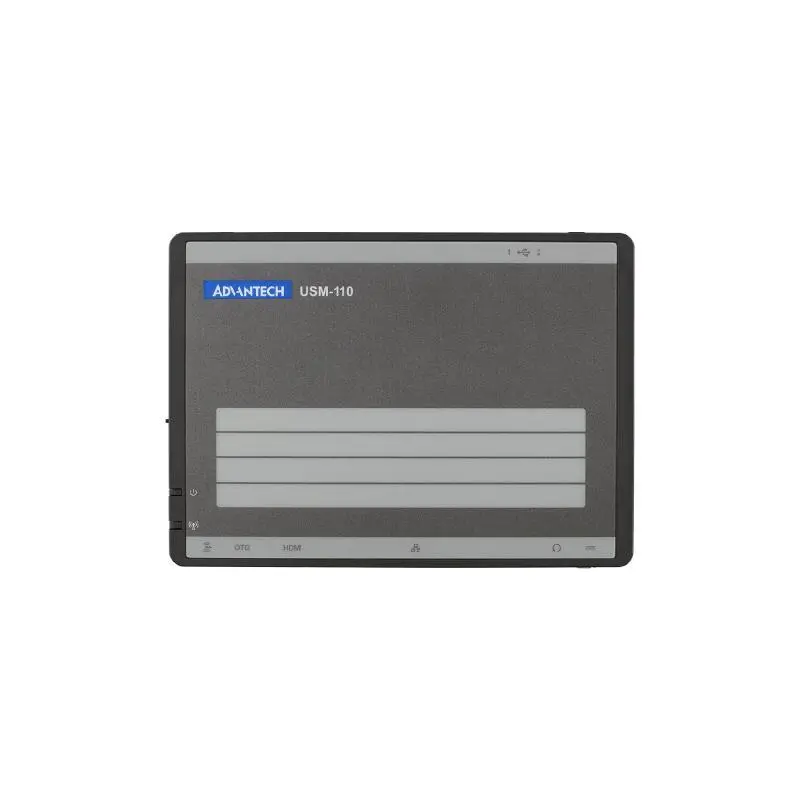

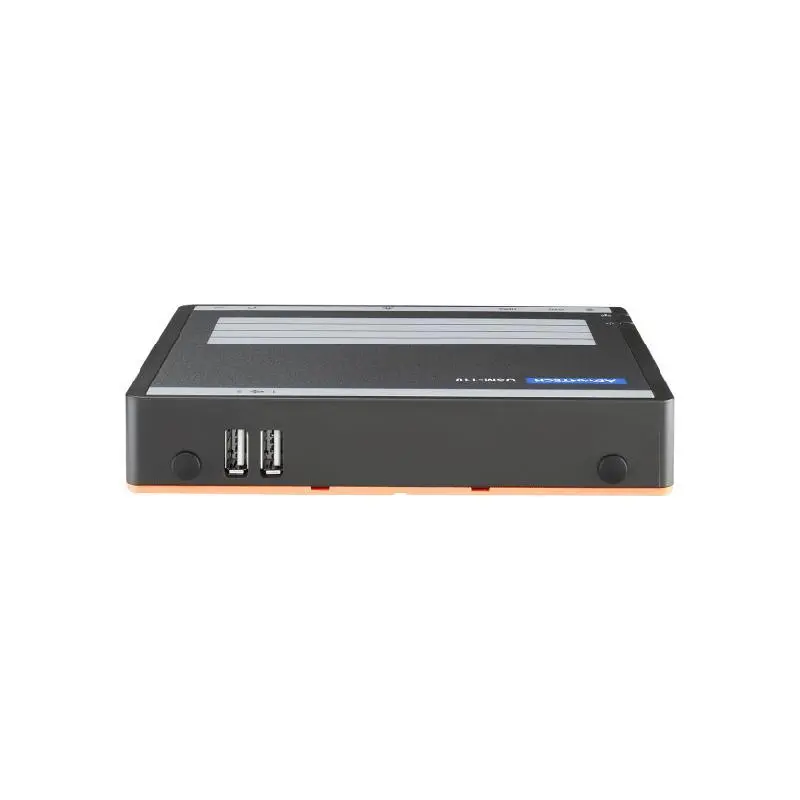

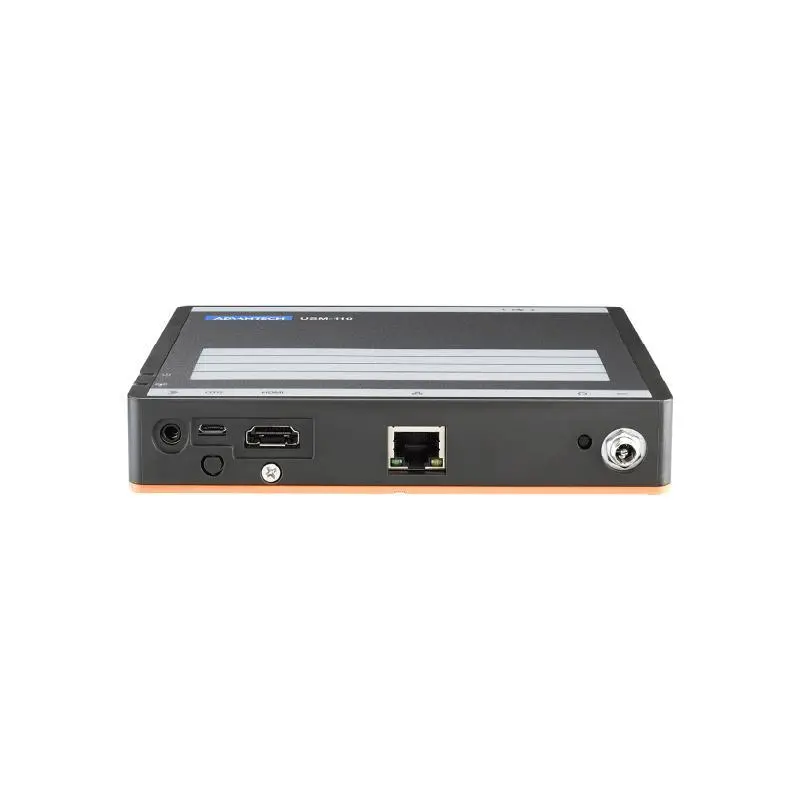

Advantech USM-110C The USM-110C is a 4K ultra-compact RISC-based hospitality box computer equipped with an Arm® Cortex®-A55 quad-core processor.
