Advantech UBX-210K Ubiquitous Box Computer with Intel® N97/Core™ i3-N305 Processors

    Built-in an Intel® N97 or Core™ i3-N305 processor

    Modular detachable I/O board features in rich and flexible I/O deployment

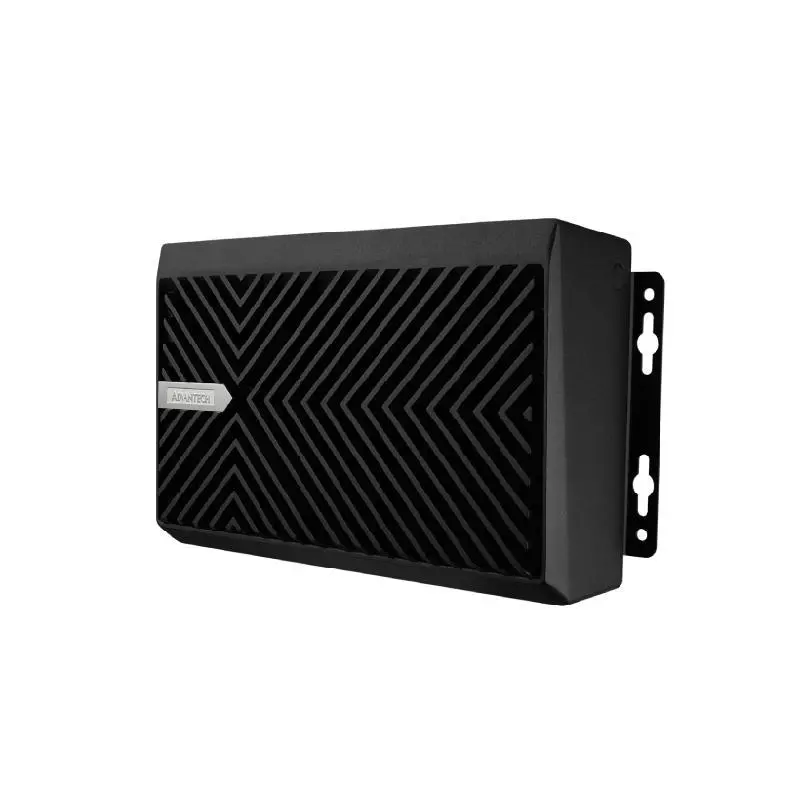

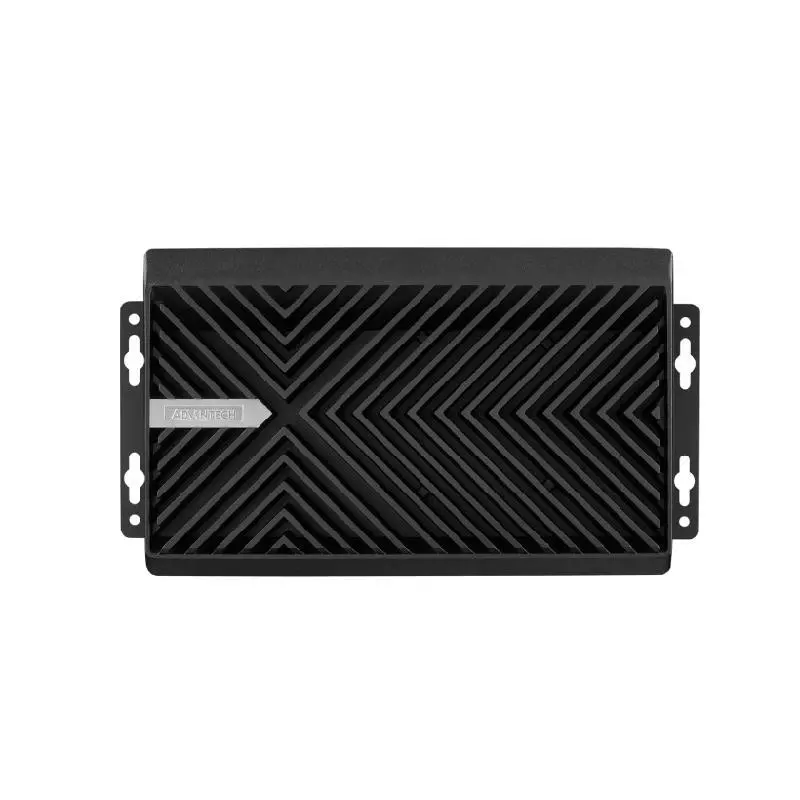

    Unique X-type fin design enhances system heat dissipation; the mounting direction is not limited by airflow

    Equipped with TPM2.0 chip for data encryption enhancement

    Supports one DDR5 SODIMM slot and two M.2 2280 SATA SSD slots

    Can be integrated with optional WiFi and Bluetooth combo module

    Support Windows 10 IoT LTSC, Windows 11 IoT, or Linux

UBX-210K-BN100 UBX-210K-BN200 UBX-210K-BN101 UBX-210K-BN201
Processor System CPU Intel® N97 Intel® Core™ i3-N305 Intel® N97 Intel® Core™ i3-N305
Processor System OS Windows 10 IoTEnt LTSC / Windows 11 IoT / Linux Windows 10 IoTEnt LTSC / Windows 11 IoT / Linux Windows 10 IoTEnt LTSC / Windows 11 IoT / Linux Windows 10 IoTEnt LTSC / Windows 11 IoT / Linux
Memory Technology DDR5-4800 DDR5-4800 DDR5-4800 DDR5-4800
Memory Max. Capacity 16 GB 16 GB 16 GB 16 GB
Image Resolution USB-C 4K UHD (4096 x 2160@60Hz) 4K UHD (4096 x 2160@60Hz) 4K UHD (4096 x 2160@60Hz) 4K UHD (4096 x 2160@60Hz)
Image Resolution HDMI 4K UHD (4096 x 2160@60Hz) 4K UHD (4096 x 2160@60Hz) 4K UHD (4096 x 2160@60Hz) 4K UHD (4096 x 2160@60Hz)
Expansion WiFi 1 x M.2 2230 1 x M.2 2230 1 x M.2 2230 1 x M.2 2230
Expansion Storage 2 x M.2 2280 2 x M.2 2280 2 x M.2 2280 2 x M.2 2280
I/O Interface Audio 1 x Line-out 1 x Line-out 1 x Line-out 1 x Line-out
I/O Interface COM 1 (RS232/422/485) 1 (RS232/422/485) 1 (RS232/422/485), 3 (RS232) 1 (RS232/422/485), 3 (RS232)
I/O Interface Powered COM 3 x 5V/12V 3 x 5V/12V N/A N/A
I/O Interface USB Port 1 x USB-C, 4 x USB 3.2 Gen 1 Type A, 2 x USB 2.0 Type A 1 x USB-C, 4 x USB 3.2 Gen 1 Type A, 2 x USB 2.0 Type A 1 x USB-C, 4 x USB 3.2 Gen 1 Type A, 4 x USB 2.0 Type A 1 x USB-C, 4 x USB 3.2 Gen 1 Type A, 4 x USB 2.0 Type A
I/O Interface Powered USB Port 1 x 24V , 2 x 12V 1 x 24V , 2 x 12V N/A N/A
I/O Interface Ethernet 2 x Intel i226 2 x Intel i226 2 x Intel i226 2 x Intel i226
I/O Interface Output 1 x USB-C, 1 x HDMI2.1, 1 x VGA (Optional) 1 x USB-C, 1 x HDMI2.1, 1 x VGA (Optional) 1 x USB-C, 1 x HDMI2.1, 1 x VGA (Optional) 1 x USB-C, 1 x HDMI2.1, 1 x VGA (Optional)
I/O Interface Power Jack 1 x DC 24V 1 x DC 24V 1 x DC 19V 1 x DC 19V
I/O Interface Cash Drawer 1 x 12V/24V RJ-12 1 x 12V/24V RJ-12 N/A N/A
Power Supply Operating Temperature 0~ 45 °C 0~ 45 °C 0~ 45 °C 0~ 45 °C
Mounting Mounting VESA, Desk, Wall VESA, Desk, Wall VESA, Desk, Wall VESA, Desk, Wall
