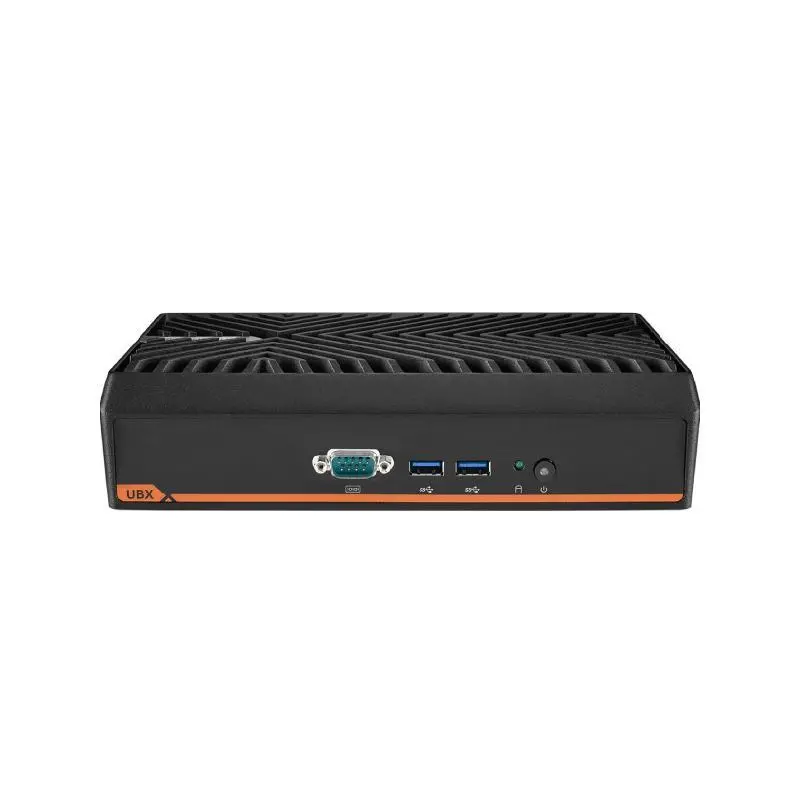

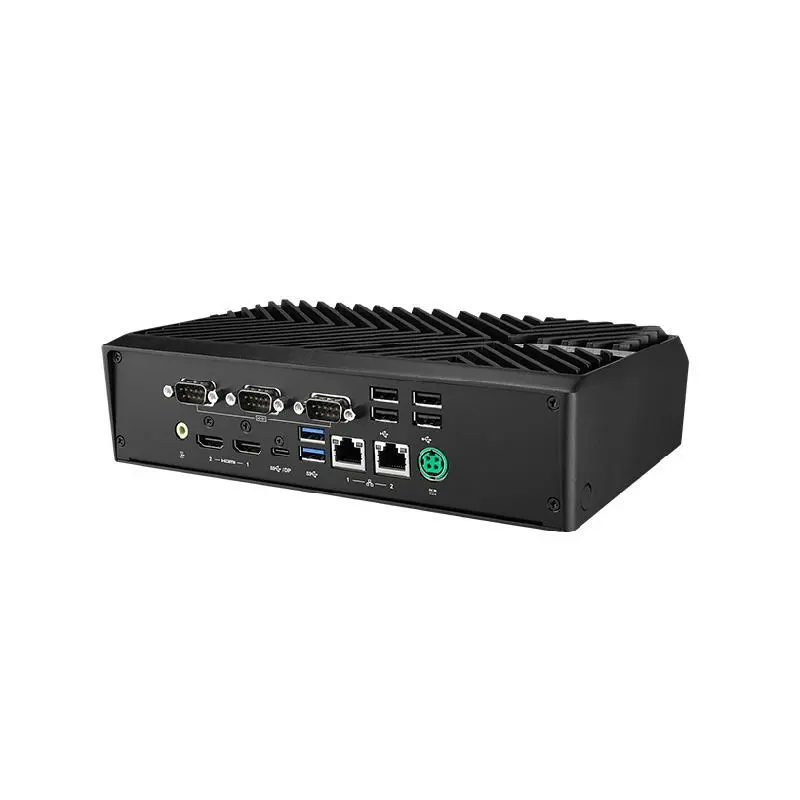

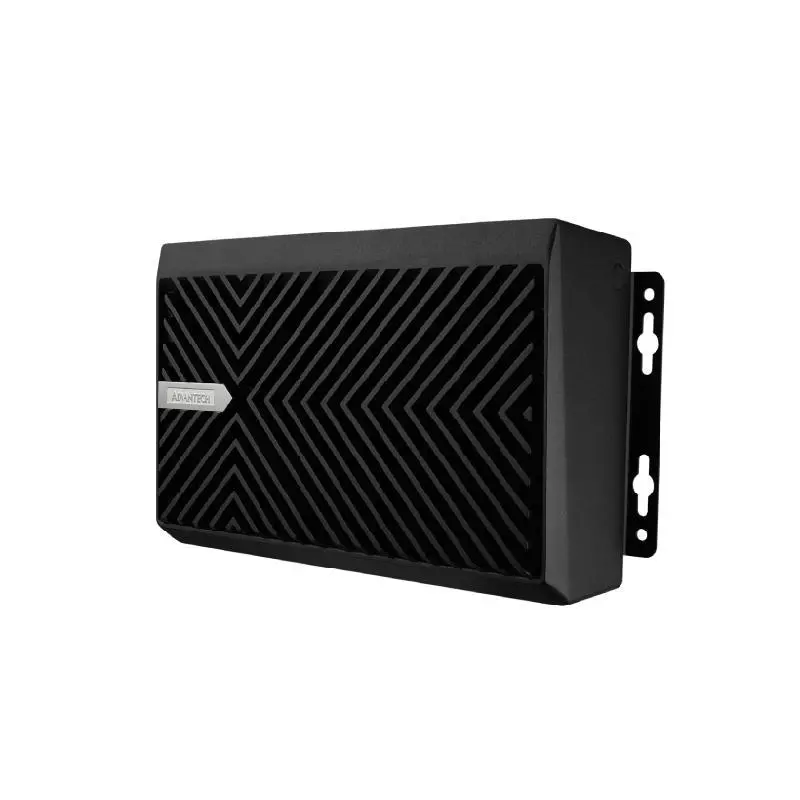

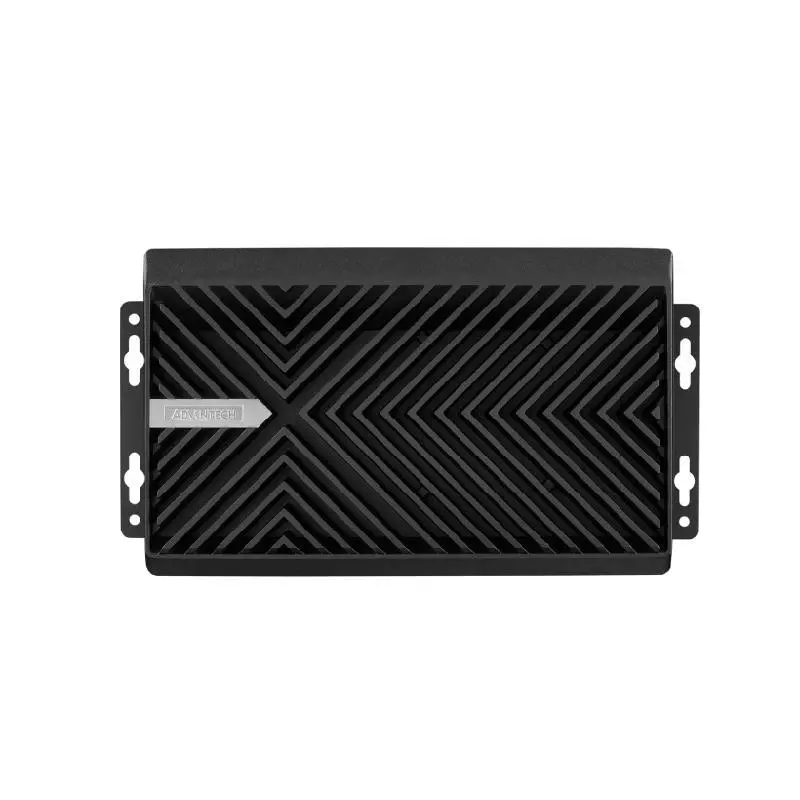

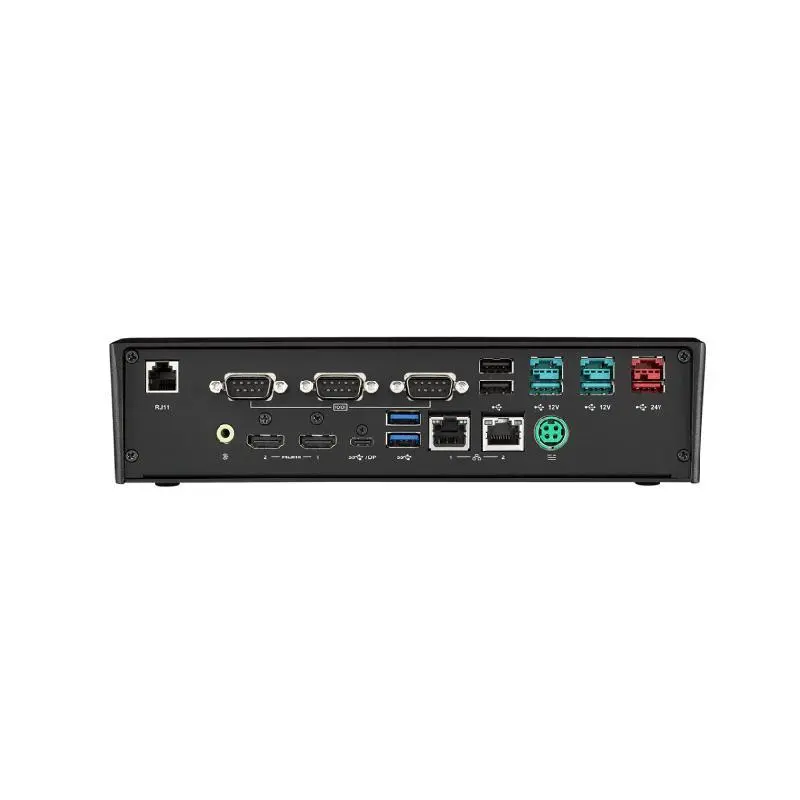

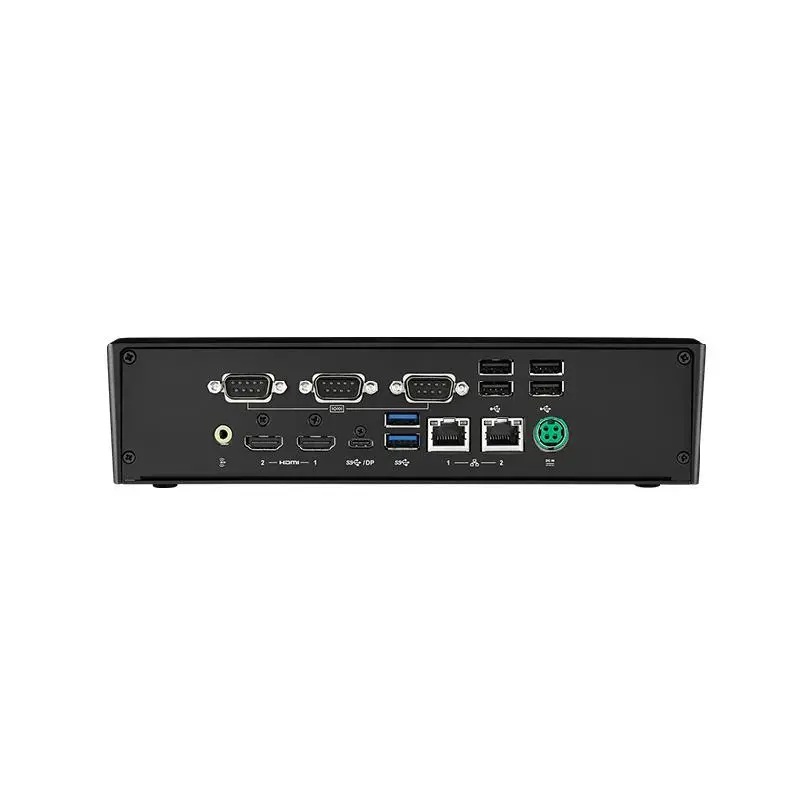

Advantech UBX-210H Ubiquitous Box Computer with Intel® Celeron® 6305E/Core™ i3-1115G4E/Core™ i5-1145G7E/Core™ i7-1185G7E Processors

    Modular detachable I/O board features in rich and flexible I/O deployment

    Unique X-type fin design enhances system heat dissipation; the mounting direction is not limited by airflow

    Equipped with TPM2.0 chip for data encryption enhancement

    Two M.2 2280 SSD slots to support RAID 0/1 that offers a complete data backup solution

    Can be integrated with optional WiFi and Bluetooth combo module

    Support Windows 10 IoT LTSC, Windows 11 IoT, or Linux

UBX-210H-BCL00 UBX-210H-BI300 UBX-210H-BI500 UBX-210H-BI700 UBX-210H-BCL01 UBX-210H-BI301 UBX-210H-BI501 UBX-210H-BI701
Processor System CPU Intel® Celeron® 6305E Intel® Core™ i3-1115G4E Intel® Core™ i5-1145G7E Intel® Core™ i7-1185G7E Intel® Celeron® 6305E Intel® Core™ i3-1115G4E Intel® Core™ i5-1145G7E Intel® Core™ i7-1185G7E
Processor System OS Windows 10 IoTEnt LTSC / Windows 11 IoT / Linux Windows 10 IoTEnt LTSC / Windows 11 IoT / Linux Windows 10 IoTEnt LTSC / Windows 11 IoT / Linux Windows 10 IoTEnt LTSC / Windows 11 IoT / Linux Windows 10 IoTEnt LTSC / Windows 11 IoT / Linux Windows 10 IoTEnt LTSC / Windows 11 IoT / Linux Windows 10 IoTEnt LTSC / Windows 11 IoT / Linux Windows 10 IoTEnt LTSC / Windows 11 IoT / Linux
Memory Technology DDR4-3200 DDR4-3200 DDR4-3200 DDR4-3200 DDR4-3200 DDR4-3200 DDR4-3200 DDR4-3200
Memory Max. Capacity 64 GB 64 GB 64 GB 64 GB 64 GB 64 GB 64 GB 64 GB
Image Resolution USB-C 8K UHD (7680 x 4320 @ 60Hz) 8K UHD (7680 x 4320 @ 60Hz) 8K UHD (7680 x 4320 @ 60Hz) 8K UHD (7680 x 4320 @ 60Hz) 8K UHD (7680 x 4320 @ 60Hz) 8K UHD (7680 x 4320 @ 60Hz) 8K UHD (7680 x 4320 @ 60Hz) 8K UHD (7680 x 4320 @ 60Hz)
Image Resolution HDMI 4K UHD (4096 x 2160@60Hz) 4K UHD (4096 x 2160@60Hz) 4K UHD (4096 x 2160@60Hz) 4K UHD (4096 x 2160@60Hz) 4K UHD (4096 x 2160@60Hz) 4K UHD (4096 x 2160@60Hz) 4K UHD (4096 x 2160@60Hz) 4K UHD (4096 x 2160@60Hz)
Expansion WiFi 1 x M.2 2230 1 x M.2 2230 1 x M.2 2230 1 x M.2 2230 1 x M.2 2230 1 x M.2 2230 1 x M.2 2230 1 x M.2 2230
Expansion Storage 2 x M.2 2280 2 x M.2 2280 2 x M.2 2280 2 x M.2 2280 2 x M.2 2280 2 x M.2 2280 2 x M.2 2280 2 x M.2 2280
I/O Interface Audio 1 x Line-out 1 x Line-out 1 x Line-out 1 x Line-out 1 x Line-out 1 x Line-out 1 x Line-out 1 x Line-out
I/O Interface COM 1 (RS232/422/485) 1 (RS232/422/485) 1 (RS232/422/485) 1 (RS232/422/485) 1 (RS232/422/485), 3 (RS232) 1 (RS232/422/485), 3 (RS232) 1 (RS232/422/485), 3 (RS232) 1 (RS232/422/485), 3 (RS232)
I/O Interface Powered COM 3 x 5V/12V 3 x 5V/12V 3 x 5V/12V 3 x 5V/12V N/A N/A N/A N/A
I/O Interface USB Port 1 x USB-C, 4 x USB 3.2 Gen 2 Type A, 2 x USB 2.0 Type A 1 x USB-C, 4 x USB 3.2 Gen 2 Type A, 2 x USB 2.0 Type A 1 x USB-C, 4 x USB 3.2 Gen 2 Type A, 2 x USB 2.0 Type A 1 x USB-C, 4 x USB 3.2 Gen 2 Type A, 2 x USB 2.0 Type A 1 x USB-C, 4 x USB 3.2 Gen 1 Type A, 4 x USB 2.0 Type A 1 x USB-C, 4 x USB 3.2 Gen 1 Type A, 4 x USB 2.0 Type A 1 x USB-C, 4 x USB 3.2 Gen 1 Type A, 4 x USB 2.0 Type A 1 x USB-C, 4 x USB 3.2 Gen 1 Type A, 4 x USB 2.0 Type A
I/O Interface Powered USB Port 1 x 24V P-USB, 2 x 12V P-USB 1 x 24V P-USB, 2 x 12V P-USB 1 x 24V P-USB, 2 x 12V P-USB 1 x 24V P-USB, 2 x 12V P-USB N/A N/A N/A N/A
I/O Interface Ethernet 1 x Intel i219, 1 x Intel i225 1 x Intel i219, 1 x Intel i225 1 x Intel i219, 1 x Intel i225 1 x Intel i219, 1 x Intel i225 1 x Intel i219, 1 x Intel i225 1 x Intel i219, 1 x Intel i225 1 x Intel i219, 1 x Intel i225 1 x Intel i219, 1 x Intel i225
I/O Interface Output 1 x USB-C, 2 x HDMI2.0b 1 x USB-C, 2 x HDMI2.0b 1 x USB-C, 2 x HDMI2.0b 1 x USB-C, 2 x HDMI2.0b 1 x USB-C, 2 x HDMI2.0b 1 x USB-C, 2 x HDMI2.0b 1 x USB-C, 2 x HDMI2.0b 1 x USB-C, 2 x HDMI2.0b
I/O Interface Power Jack 1 x DC 24V 1 x DC 24V 1 x DC 24V 1 x DC 24V 1 x DC 19V 1 x DC 19V 1 x DC 19V 1 x DC 19V
I/O Interface Cash Drawer 1 x 12V/24V RJ-12 1 x 12V/24V RJ-12 1 x 12V/24V RJ-12 1 x 12V/24V RJ-12 N/A N/A N/A N/A
Power Supply Operating Temperature 0~ 45 °C 0~ 45 °C 0~ 45 °C 0~ 45 °C 0~ 45 °C 0~ 45 °C 0~ 45 °C 0~ 45 °C
Mounting Mounting VESA, Desk, Wall VESA, Desk, Wall VESA, Desk, Wall VESA, Desk, Wall VESA, Desk, Wall VESA, Desk, Wall VESA, Desk, Wall VESA, Desk, Wall
