| UBX-310F-I5B00 | UBX-310F-I3B00 | ||
| Processor System | OS | Windows 7, Windows 8, and Windows 10 IoT Enterprise | Windows 7, Windows 8, and Windows 10 IoT Enterprise |
| Processor System | CPU | Intel® Core™ i5-6300U | Intel® Core™ i3-6100U |
| Processor System | RAM | Maximum up to 16GB | Maximum up to 16GB |
| Processor System | Storage | 1 x 2.5-inch SATA III HDD / SSD, 2 x mSATA | 1 x 2.5-inch SATA III HDD / SSD, 2 x mSATA |
| I/O Interface | Serial Port | 4 x COM, COM1, COM2 support 5V or 12V power,COM 2 support RS232/422/485 by order | 4 x COM, COM1, COM2 support 5V or 12V power,COM 2 support RS232/422/485 by order |
| I/O Interface | USB Port | 3 x USB 2.0, 4 x USB 3.0 | 3 x USB 2.0, 4 x USB 3.0 |
| I/O Interface | Output | 1 x VGA port, 1 x HDMI port | 1 x VGA port, 1 x HDMI port |
| I/O Interface | Audio | 1 x Line-out, 1 x Mic-in | 1 x Line-out, 1 x Mic-in |
| I/O Interface | Ethernet | 1 x RJ-45 Gigabit Ethernet (10/100/1000) | 1 x RJ-45 Gigabit Ethernet (10/100/1000) |
| I/O Interface | Extendable Slot | Mini PCIe, mSATA | Mini PCIe, mSATA |
| I/O Interface | Cash Drawer | 1 x RJ11, 24V (default)/12V(by order) | 1 x RJ11, 24V (default)/12V(by order) |
| Operating Temperature | External Power | 0 ~ 40° C | 0 ~ 40° C |
| Dimensions | Dimensions | 245 x 45 x 185 mm | 245 x 45 x 185 mm |
| Weight (kg) | Weight (kg) | 2.0 kg | 2.0 kg |
| Environment | Storage Temperature | -40 ~ 85° C | -40 ~ 85° C |
| Environment | Operating Humidity | 90% @ 40°C non-condensing | 90% @ 40°C non-condensing |

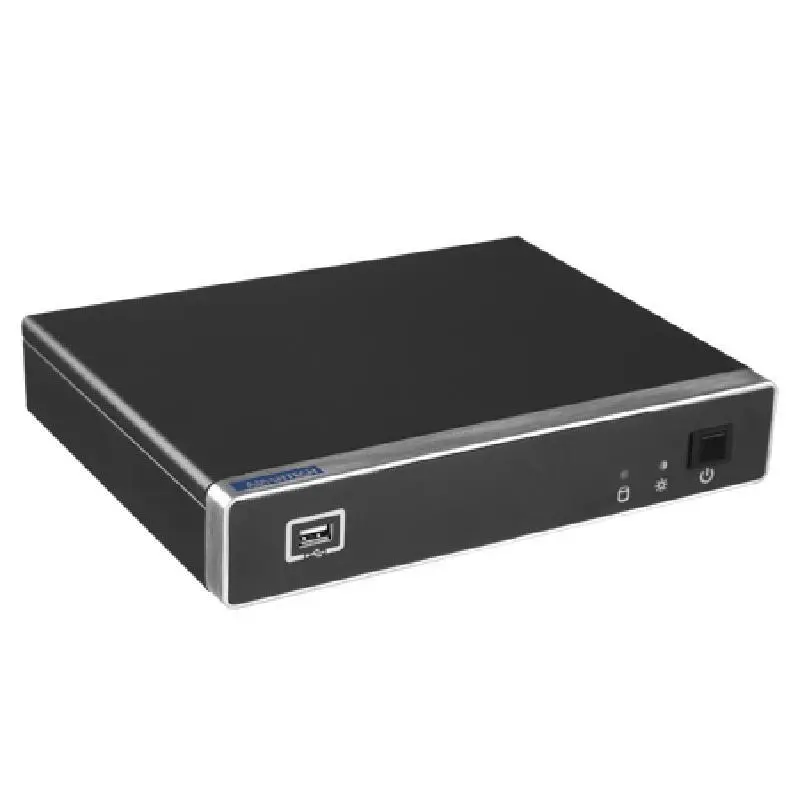

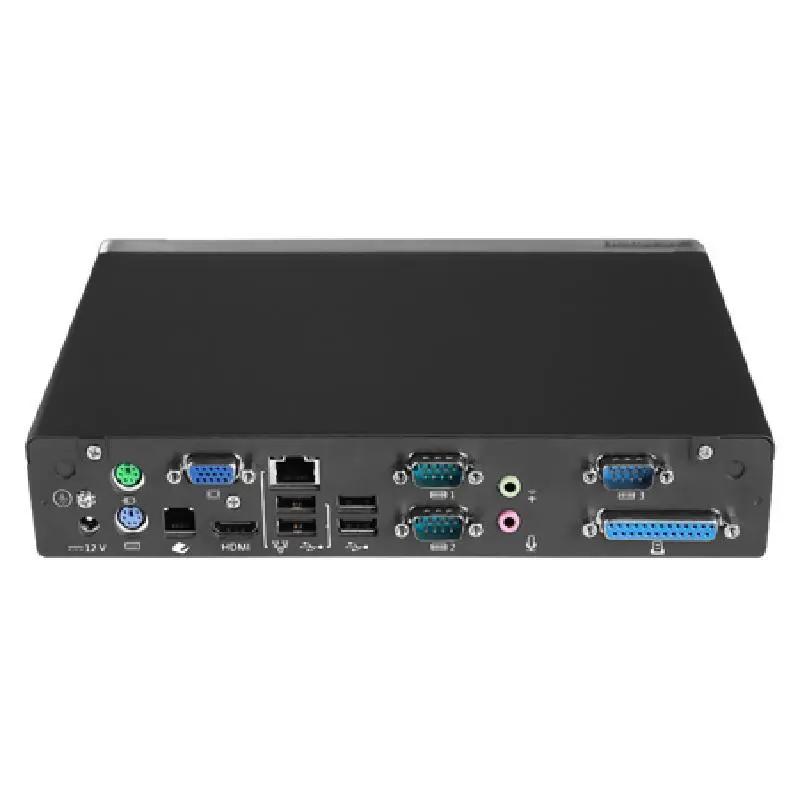

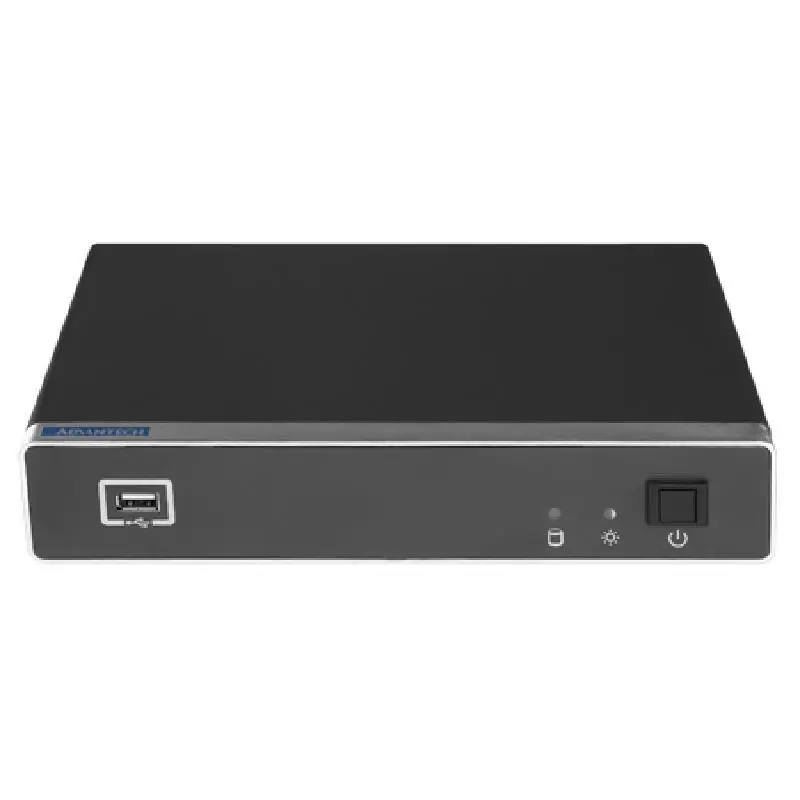

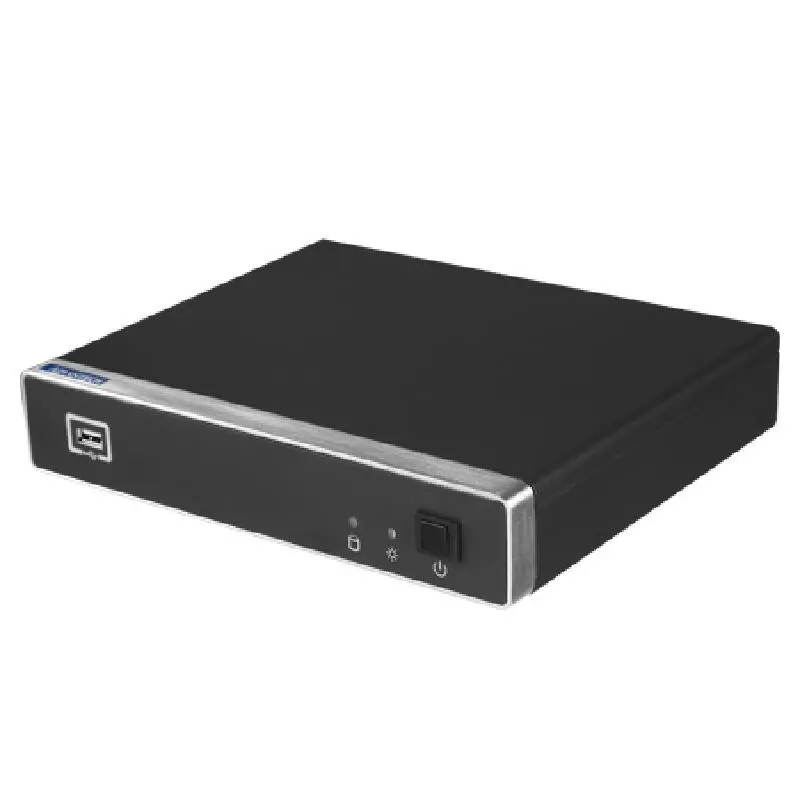

Advantech UBX-310 UBX-310, an intelligent, fanless embedded system powered by Intel® low power processor with multiple I/O interface.
