| UBX-510SL-BBR00 | ||
| Processor System | CPU | 13th/12th Intel® Gen. Core™ i7/i5/i3 series |
| Processor System | Socket | LGA1200 |
| Processor System | OS | Windows Server 2022, Windows 10/11 |
| Memory | Technology | DDR5-4400/4000/3600 |
| Memory | Max. Capacity | 128 GB |
| Memory | Total Slots | 4 (Dual Channel) |
| Storage | Drive Bay | Max. 4 x 3.5" internal (or Max. 6 x 2.5" internal with optional brackets and 1 x 3.5" internal) |
| Graphics | Controller | Intel® HD Graphics |
| Graphics | VRAM | 1 GB maximum shared memory with 2 GB and above systemmemory installed |
| Expansion | Storage | 1 x M.2 2280 |
| Expansion | PCIe x 16 slot | 1 |
| Expansion | PCIe x 4 slot | 2 |
| I/O Interface | Audio | Mic-in, Line-out |
| I/O Interface | COM | 1 x DB9 |
| I/O Interface | USB Port | 2 x USB 3.2 Gen1, 4 x USB 3.2 Gen2 Type-A |
| I/O Interface | Powered USB Port | N/A |
| I/O Interface | Ethernet | 4 x RJ-45 |
| I/O Interface | Output | 1 x HDMI, 1 x VGA, 1 x DVI-D |
| Power Supply | Input Voltage | 500 W 80+bronze PSU |
| Power Supply | Operating Temperature | 0 ~ 40°C |

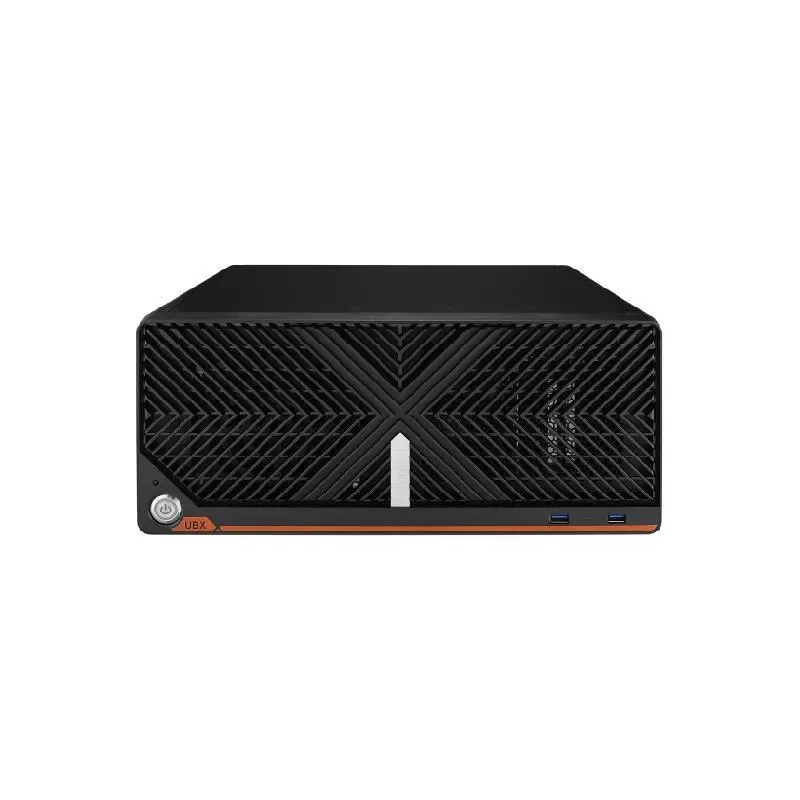

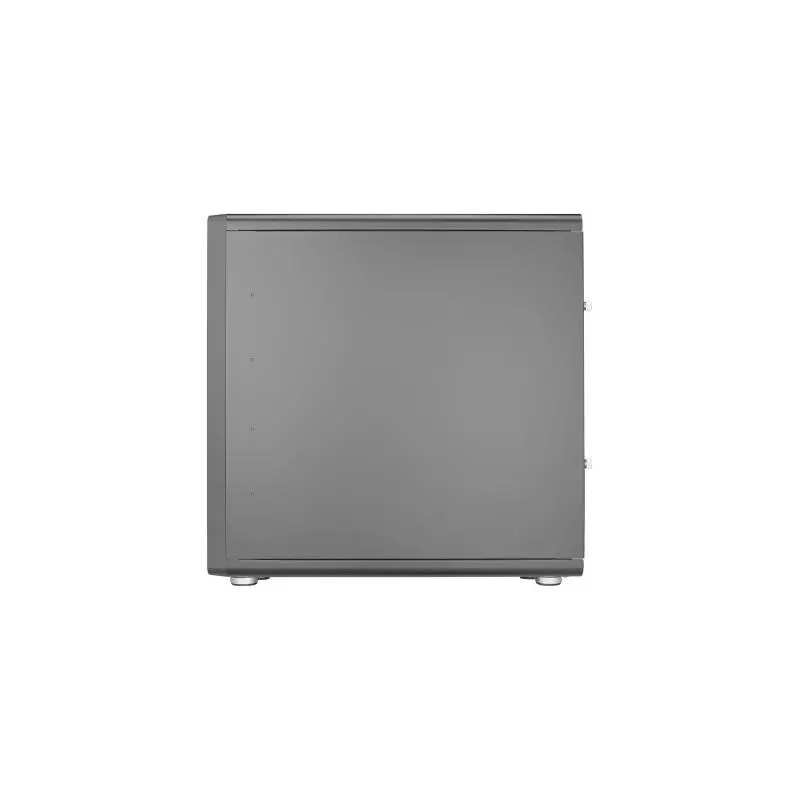

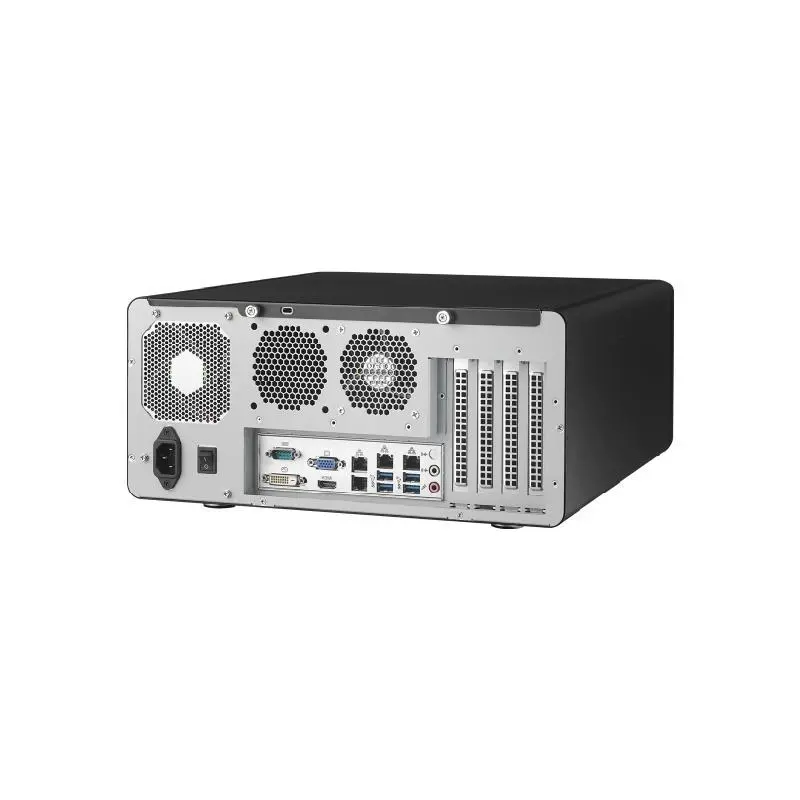

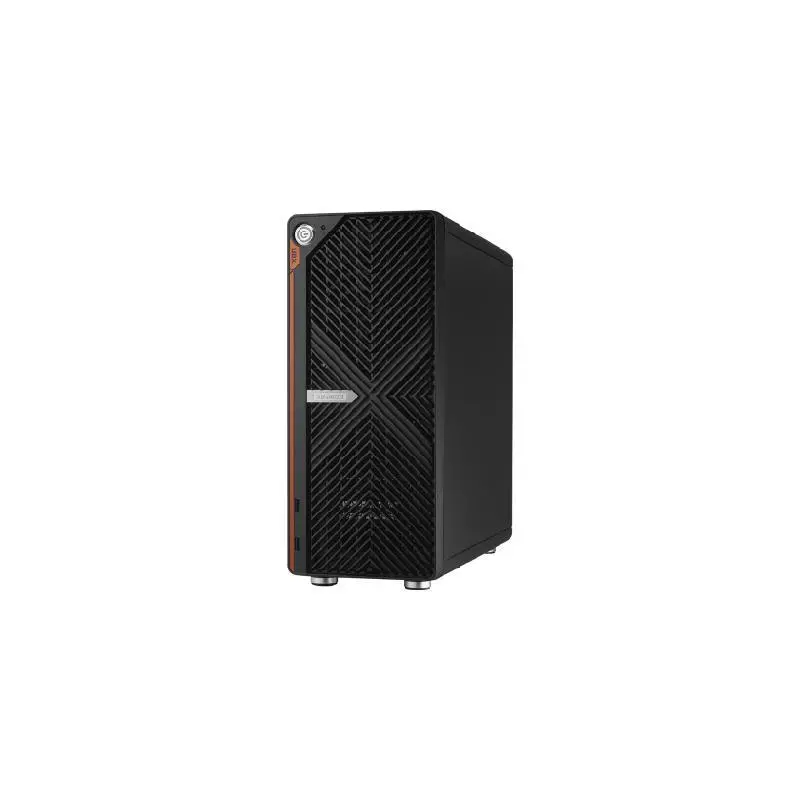

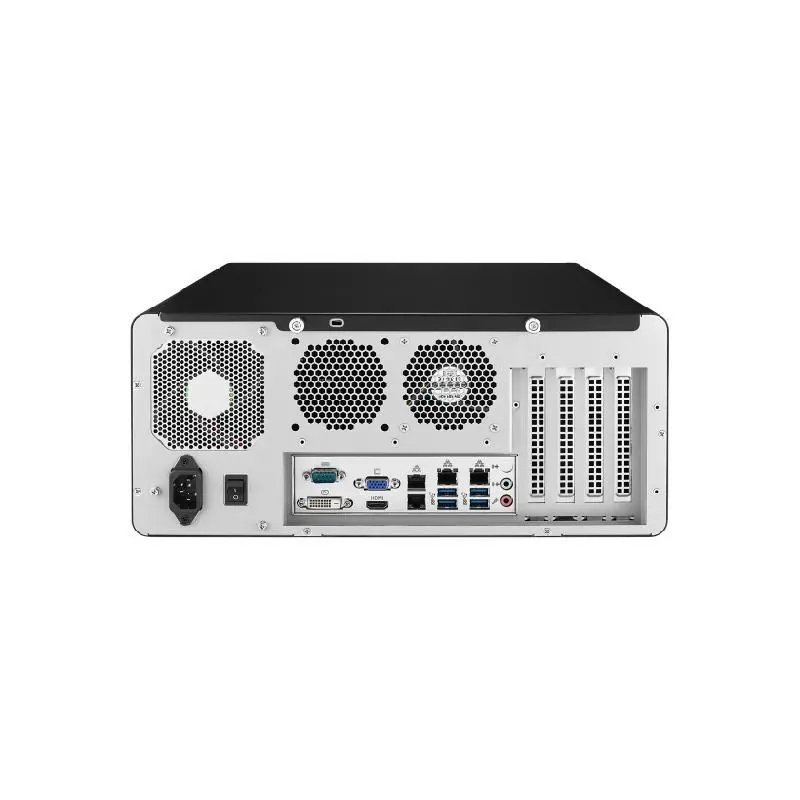

Advantech UBX-510SL Edge Mini Server System with Intel® 13/12th Gen Core™ i7/i5/i3 Series Processor.
