Wisdomie 21.5 inch industrial panel pc
1. Optional Intel® J1900 or 4th/7/8/11th generation Core i3/i5/i7 CPU
2. One DDR3L SODIMM memory slot, supporting up to 8GB memory
3. LCD+HDMI dual display, synchronous/asynchronous mode
4. Full flat touch screen, front panel IP65 protection level
5. Low power consumption and no fan
6. 9 ~ 36V wide voltage input
Features
All aluminum shell
Durability
Aluminum casings provide robust protection for industrial tablet computers, making them more resistant to physical impacts and wear.
Heat Dissipation
Aluminum is highly effective in dissipating heat, which is crucial for maintaining the optimal operating temperature of the device and prolonging its lifespan.
Corrosion Resistance
Aluminum naturally resists corrosion, which is essential in harsh industrial settings where exposure to chemicals and moisture is common.

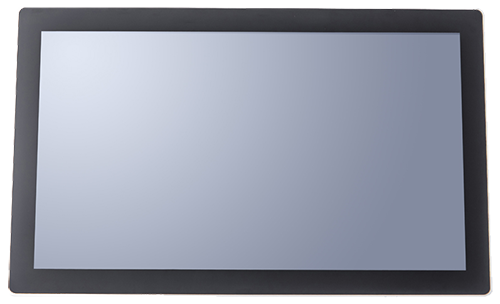

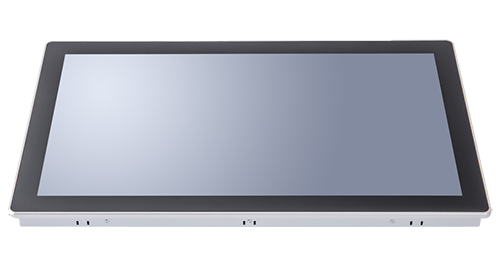

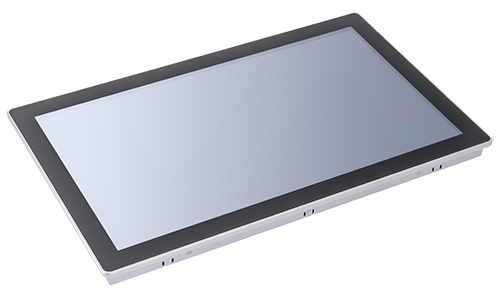

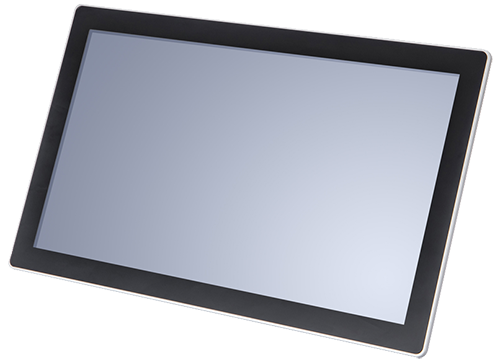

Product Images
CPU
Optional Intel® Celeron® J1900 or 4th/7/8/11th generation Core i3/i5/i7 CPU
Memory
One SODIMM slot, supporting up to 16GB
Network
2 x GbE RJ45
I / O interface
3 x USB2.0, 1 x USB3.0
2 x DB-9 COM1&COM2,RS-232/485
2 x 3-wire COM3&COM4 RS-232/485 Phoenix
2 x 3-wire COM5&COM6 RS-232 Phoenix
1 x Audio Line-out
2 x 8Ω 1W output (optional)
1 x phoenix remote switch can be connected to the optional port
1 x HDMI
1 x 12bit GPIO (optional)
Storage
1 x mSATA
1 x SATA ( 2.5” SATA )
Expansion slot
Mini-PCIe x1 half card，support WIFI blue bluetooth
Watchdog timer
1~255 seconds programmable setting
Support system
Windows® 7 /8/10, WES 7, LINUX, Android
Material
aluminum
Installation method
VESA 75/ panel mount
Size
397.3 x 255.3 x 50.3 mm
Weight
5.8 KG
Operating temperature
0°C ~ 60°C
Storage temperature
- 30°C ~ 70°C
Storage humidity
10~90% @30°C, non-condensing
Power supply
DC 9 ~ 36V 2-pin Phoenix terminal
Display screen
21.5" TFT-LCD
Resolution
1920 x 1080
Maximum color
16.7M
Brightness
300 cd/m²
Viewing angle ( CR>=10 )
~ 85° (H), -85~85° (V)
Backlight
led
Backlight life ( hours )
5 -wire resistive or 10 point capacitive screen
Transmittance
78% or more than 85%
Service life
10 million clicks with 250 grams of strength Hardness 7H
